• Country
• France

• Manufacturer / Brand
• Minerva Radio; Paris

• Year
• 1940 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 153198

• Number of Tubes
• 6

• Valves / Tubes
• 6A8 6M7 6Г7 6F6 EM11 1561

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 210-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

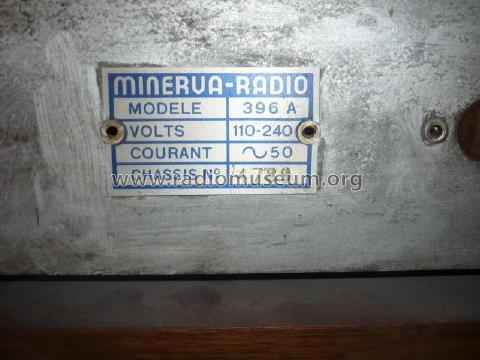

• Model: 396A [Octals & EM11] - Minerva Radio; Paris

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 620 x 290 x 390 mm / 24.4 x 11.4 x 15.4 inch

• Notes
• connected with Electrit?

• Author
• Model page created by Jean-Paul Pourbaix. See "Data change" for further contributors.

• Other Models

• Here you find 40 models, 30 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Minerva Radio; Paris
