456

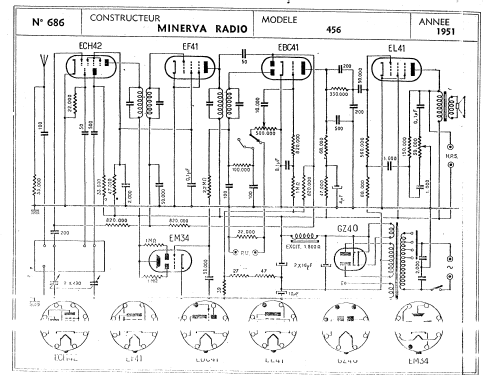

456; Minerva Radio; Paris (ID = 615200) Radio
456; Minerva Radio; Paris (ID = 2030210) Radio 456; Minerva Radio; Paris (ID = 2030211) Radio

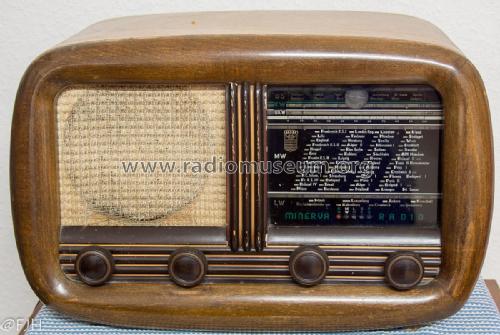

456; Minerva Radio; Paris (ID = 2030212) Radio 456; Minerva Radio; Paris (ID = 2030213) Radio
456; Minerva Radio; Paris (ID = 2030214) Radio
Use red slider bar for more.
456; Minerva Radio; Paris (ID = 2030210) Radio
Minerva Radio; Paris: 456 [Radio] ID = 2030210 1200x863
Select picture or schematic to display from thumbnails on the right and click for download.
For model 456, Minerva Radio; Paris

Country:  France
Manufacturer / Brand:  Minerva Radio; Paris
Year: 1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EF41 EBC41 EL41 GZ40 EM34
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110 - 245 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: 456 - Minerva Radio; Paris
Material Wooden case
Dimensions (WHD) 450 x 270 x 230 mm / 17.7 x 10.6 x 9.1 inch
Notes 2 OC dont une bande étalée.
Price in first year of sale 24'850.00 FRF
External source of data Serge Laffont/Martin Renoth
Literature/Schematics (1) Radio Constructeur et Dépanneur 1952


All listed radios etc. from Minerva Radio; Paris
Here you find 38 models, 29 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
