• Year
  • 1946 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 141125
    • alternative name: Cozzi Luigi Dell'Aquila

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-220 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet.
  • Material
  • Wooden case

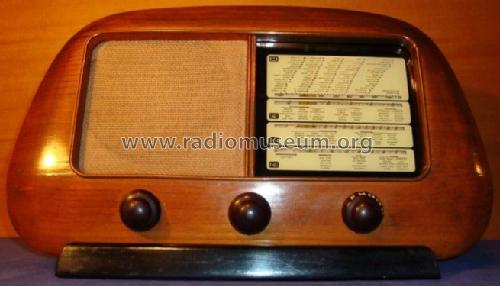

  • from Radiomuseum.org
  • Model: 465/2 - Minerva Ital-Minerva; Milano
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 570 x 340 x 280 mm / 22.4 x 13.4 x 11 inch
  • Notes
  • Gamme d'onda: medie e 3 corte.
    Wave bands: BC, 3x SW.
  • Literature/Schematics (1)
  • -- Schematic
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
