• Country
• Italy

• Manufacturer / Brand
• Minerva (Ital-Minerva); Milano

• Year
• 1946 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 80000

• • alternative name: Cozzi Luigi Dell'Aquila

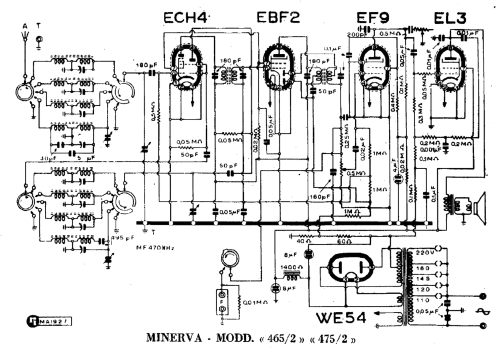

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH4 EBF2 EF9 EL3 WE54

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110,120,145,160,220 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Wooden case

• from Radiomuseum.org
• Model: 475/2 - Minerva Ital-Minerva; Milano

• Shape
• Tablemodel, low profile (big size).

• Author
• Model page created by Riccardo Landi. See "Data change" for further contributors.
