Americain- Oceanic

Americain- Oceanic ; Minerva-Radio (ID = 1046232) Radio Americain- Oceanic ; Minerva-Radio (ID = 1046231) Radio
Use red slider bar for more.
Americain- Oceanic ; Minerva-Radio (ID = 1046232) Radio
Minerva-Radio: Americain- Oceanic [Radio] ID = 1046232 453x315
Select picture or schematic to display from thumbnails on the right and click for download.
For model Americain- Oceanic, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien:

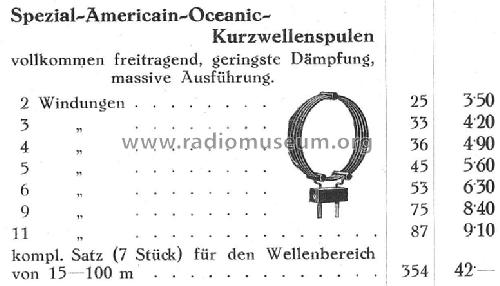

Aus Minerva- Katalog 1929/30

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1929/1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: A415 A425 B409
schematic requested
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Americain- Oceanic - Minerva-Radio Radiola-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 450 x 170 x 200 mm / 17.7 x 6.7 x 7.9 inch
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Price in first year of sale 451.00 ATS
Source of data -- Original prospect or advert
Mentioned in Radiokatalog Karl Hauswirth 1929

Model page created by Fritz Czapek † 29.9.17. See "Data change" for further contributors.
