- Manufacturer / Brand
- Recofix, L. Cozzi Dell'Aquila; Milano (see also Minerva)
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
- Power out
- 2 W (unknown quality)
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Berna 616/2 - Recofix, L. Cozzi Dell'Aquila;
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 359 x 156 x 125 mm / 14.1 x 6.1 x 4.9 inch
Riceve anche audio TV.

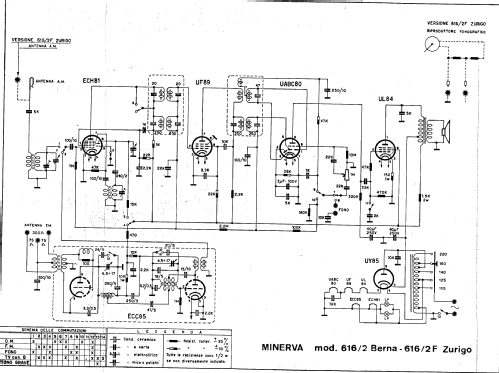

The schematic mentions Minerva as manufacturer.
- Net weight (2.2 lb = 1 kg)
- 2.950 kg / 6 lb 8 oz (6.498 lb)
- Price in first year of sale
- 29,500.00 ITL
- Literature/Schematics (1)
- -- Schematic
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
