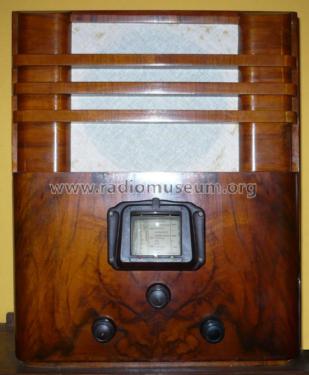

Camerad G ; Minerva-Radio (ID = 1594057) Radio Camerad G ; Minerva-Radio (ID = 1594058) Radio
Camerad G ; Minerva-Radio (ID = 1594059) Radio
Use red slider bar for more.
Camerad G ; Minerva-Radio (ID = 99470) Radio
Minerva-Radio: Camerad G [Radio] ID = 99470 525x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Camerad G, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: CK1 CF1 CL2
Main principle Superheterodyne (common); ZF/IF 483 kHz; Super, reaction, but not adjustable
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Direct Current supply (DC) / 150/220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Camerad G - Minerva-Radio Radiola-
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 368 x 460 x 236 mm / 14.5 x 18.1 x 9.3 inch
Notes Diode
Price in first year of sale 398.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange + Schenk
