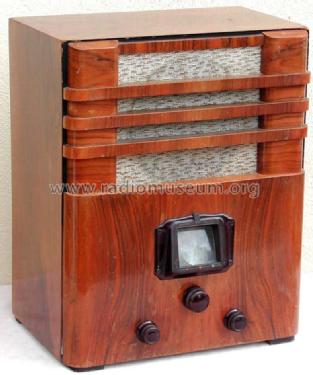

Minerva-Radio: Camerad W [Radio] ID = 812388 781x933

Select picture or schematic to display from thumbnails on the right and click for download.

For model Camerad W (A), Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

Country:

Austria

Manufacturer / Brand:

Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

Year: 1934/1935

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

4: AK1 E444 E443H 506

Main principle	Superheterodyne (common); ZF/IF 483 kHz; Reflex
Tuned circuits	6 AM circuit(s)
Wave bands	Broadcast, Long Wave and Short Wave.
Details
Power type and voltage	Alternating Current supply (AC) / 110-240 Volt
Loudspeaker	Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org	Model: Camerad W - Minerva-Radio Radiola-
Material	Wooden case
Shape	Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD)	368 x 460 x 236 mm / 14.5 x 18.1 x 9.3 inch
Notes	Reflex-Super
Price in first year of sale	378.00 öS
External source of data	E. Erb 3-907007-36-0
Source of data	Radiokatalog Band 2, Ernst Erb

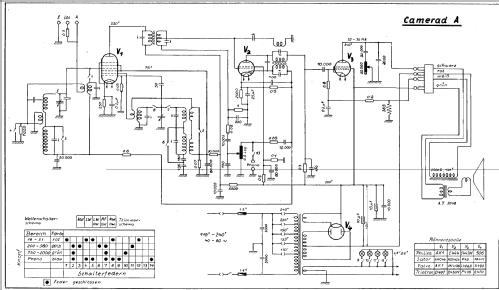

Circuit diagram reference	Lange + Schenk
Mentioned in	Radio-Amateur Wien (RA, 46), (Österreichischer Radio Amateur, ÖRA) (3412)

All listed radios etc. from Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Here you find 627 models, 559 with images and 444 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
