Super Color 7400; Minerva-Radio (ID = 135217) Television

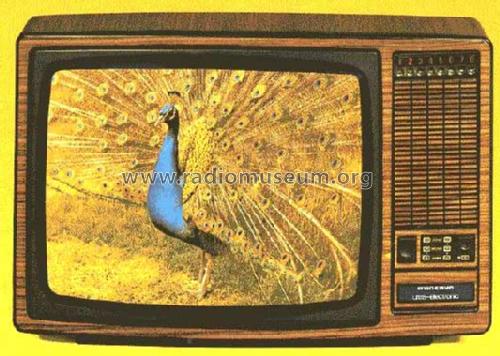

Minerva-Radio: Super Color 7400 [Television] ID = 135217 533x380
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super Color 7400, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien:
Foto aus Prospekt von Herrn Scheida.

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1978 ?? Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: A66-500X
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Super Color 7400 - Minerva-Radio Radiola-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 760 x 520 x 440 mm / 29.9 x 20.5 x 17.3 inch
Notes

VHF-Band I-III und UHF; 66-cm-Inline Farbbildröhre; volltransistorisiertes Chassis mit Tyristorendstufe, Programmwahl-Sensortasten.

Fernbedienung Tele-Pilot 8.

Source of data -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.
