Comet 616/3 (626/3)

Comet 616/3 ; Minerva Ital-Minerva (ID = 796930) Radio

Comet 616/3 ; Minerva Ital-Minerva (ID = 796931) Radio
Comet 616/3 ; Minerva Ital-Minerva (ID = 1617933) Radio Comet 616/3 ; Minerva Ital-Minerva (ID = 1617935) Radio
Comet 616/3 ; Minerva Ital-Minerva (ID = 1617931) Radio Comet 616/3 ; Minerva Ital-Minerva (ID = 1617937) Radio
Comet 616/3 ; Minerva Ital-Minerva (ID = 952069) Radio Comet 616/3 ; Minerva Ital-Minerva (ID = 2049200) Radio
Use red slider bar for more.

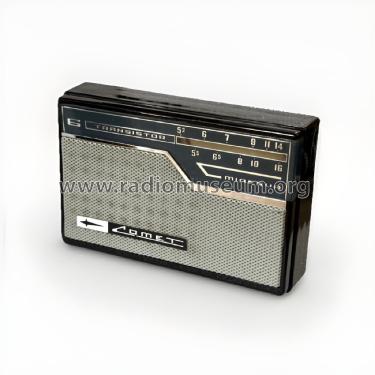

Comet 616/3 ; Minerva Ital-Minerva (ID = 1617933) Radio
Minerva Ital-Minerva: Comet 616/3 [Radio] ID = 1617933 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Comet 616/3 (626/3), Minerva (Ital-Minerva); Milano

Country:  Italy
Manufacturer / Brand:  Minerva (Ital-Minerva); Milano
alternative name

Cozzi Luigi Dell'Aquila
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: OC44 OC169 OC45 OC75 OC74 OC74 OA90 OA90
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 3 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Comet 616/3 - Minerva Ital-Minerva; Milano
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 123 x 81 x 38 mm / 4.8 x 3.2 x 1.5 inch
Notes

Venduto con custodia in pelle. Presa per auricolare.

Su Guida Pratica Transistor Radio viene indicata come Comet 626/3. La documentazione tecnica allegata in questa pagina indica però 616/3.

Net weight (2.2 lb = 1 kg) 0.375 kg / 0 lb 13.2 oz (0.826 lb)
Source of data - - Manufacturers Literature
Mentioned in Guida Pratica Transistor Radios

Model page created by Emilio Ciardiello. See "Data change" for further contributors.
