Cordless-Sport 625 ab Nr. 918.901

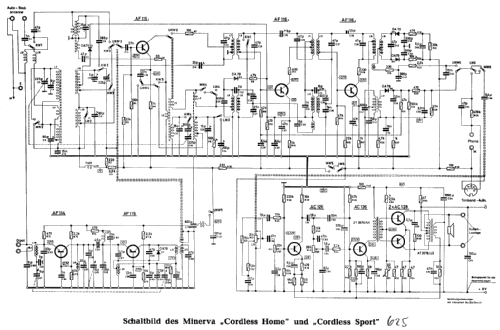

Cordless-Sport 625; Minerva-Radio (ID = 53422) Radio

Cordless-Sport 625; Minerva-Radio (ID = 53427) Radio

Cordless-Sport 625; Minerva-Radio (ID = 887480) Radio

Cordless-Sport 625; Minerva-Radio (ID = 887481) Radio

Cordless-Sport 625; Minerva-Radio (ID = 887479) Radio
Cordless-Sport 625; Minerva-Radio (ID = 2428224) Radio Cordless-Sport 625; Minerva-Radio (ID = 3688) Radio

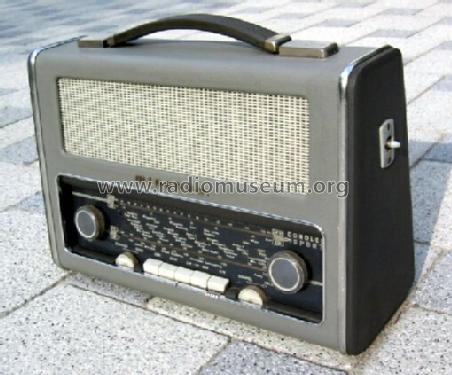

Cordless-Sport 625; Minerva-Radio (ID = 70890) Radio Cordless-Sport 625; Minerva-Radio (ID = 70891) Radio

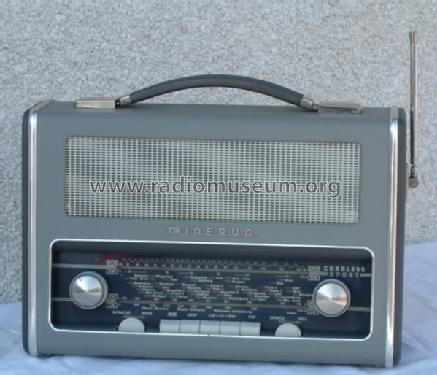

Cordless-Sport 625; Minerva-Radio (ID = 74270) Radio Cordless-Sport 625; Minerva-Radio (ID = 511230) Radio
Cordless-Sport 625; Minerva-Radio (ID = 511231) Radio Cordless-Sport 625; Minerva-Radio (ID = 574731) Radio

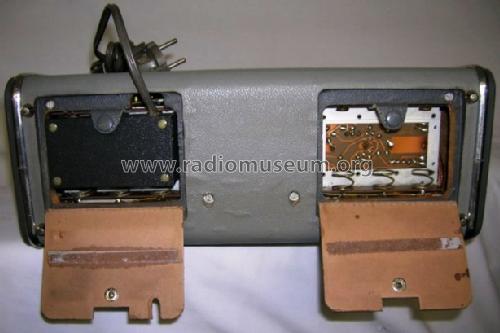

Cordless-Sport 625; Minerva-Radio (ID = 574732) Radio Cordless-Sport 625; Minerva-Radio (ID = 574733) Radio
Use red slider bar for more.
Cordless-Sport 625; Minerva-Radio (ID = 2428224) Radio
Minerva-Radio: Cordless-Sport 625 [Radio] ID = 2428224 1024x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cordless-Sport 625 ab Nr. 918.901, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1962/1963 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF114 AF115 AF116 AF116 AF116 AC126 AC126 AC128 AC128
Main principle Superheterodyne (common); ZF/IF 461/10700 kHz
Tuned circuits 8 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 6x1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Cordless-Sport 625 [ab Nr. 918.901] - Minerva-Radio Radiola-
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 365 x 245 x 140 mm / 14.4 x 9.6 x 5.5 inch
Notes

Für KW sind 7 abgestimmte Kreise wirksam.

Net weight (2.2 lb = 1 kg) 4.8 kg / 10 lb 9.2 oz (10.573 lb)
Price in first year of sale 1'695.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) RADIOBOTE, Österr. (Heft 31/2011, S.15 ff, Gerätebeschreibung)
