Cornette 300U

Cornette 300U; Minerva-Radio (ID = 664807) Radio
Cornette 300U; Minerva-Radio (ID = 711439) Radio
Use red slider bar for more.
Cornette 300U; Minerva-Radio (ID = 711439) Radio
Minerva-Radio: Cornette 300U [Radio] ID = 711439 436x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cornette 300U, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien:
Bild zum gleich aussehenden Modell automatisch kopiert statt wie bisher verknüpft (05.Jan.2010 EE).

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: AK1 E444 or RENS1254 E443H or RES964 506 or RGN1064
Main principle Superheterodyne (common); ZF/IF 128,5 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130: 150: 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Cornette 300U - Minerva-Radio Radiola-
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 370 x 450 x 280 mm / 14.6 x 17.7 x 11 inch
Notes Das Modell Minerva Cornette 300U hat für MW und KW jeweils eine Lokaltaste.
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

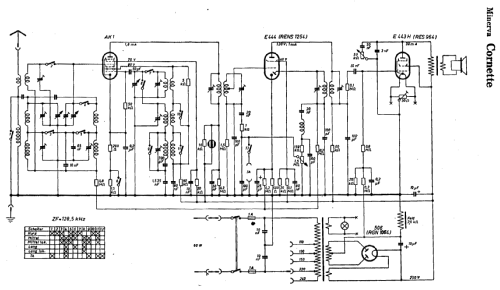

Literature/Schematics (1) -- Schematic
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
