E10

E10; Minerva-Radio (ID = 13545) Radio E10; Minerva-Radio (ID = 13546) Radio
E10; Minerva-Radio (ID = 536494) Radio E10; Minerva-Radio (ID = 536495) Radio
E10; Minerva-Radio (ID = 536496) Radio
Use red slider bar for more.

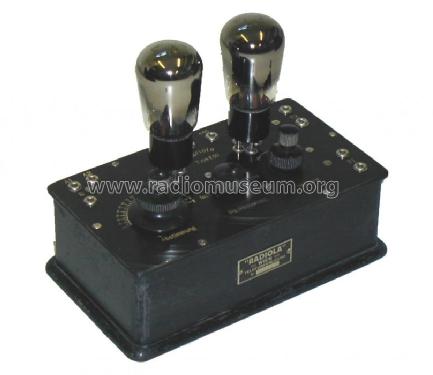

E10; Minerva-Radio (ID = 13545) Radio
Minerva-Radio: E10 [Radio] ID = 13545 809x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model E10, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1925/1926 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2:
Main principle TRF with regeneration; 1 AF stage(s); something special ? Please give information (notes)
Tuned circuits 1 AM circuit(s)
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: E10 - Minerva-Radio Radiola-
Material Wooden case, TUBES VISIBLE.
Price in first year of sale 160.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb


All listed radios etc. from Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Here you find 627 models, 559 with images and 444 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
