• Country
• Italy

• Manufacturer / Brand
• Minerva (Ital-Minerva); Milano

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 129035

• • alternative name: Cozzi Luigi Dell'Aquila

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 UCH81 UF89 UABC80 EM81 UL84 EZ81

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 3.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

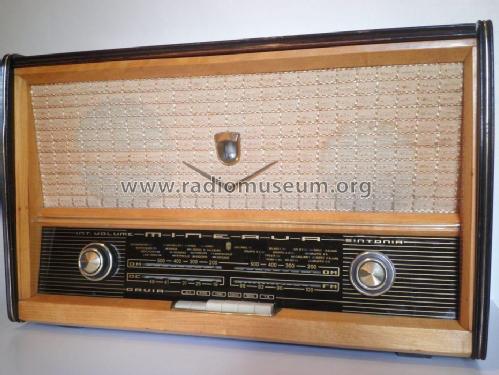

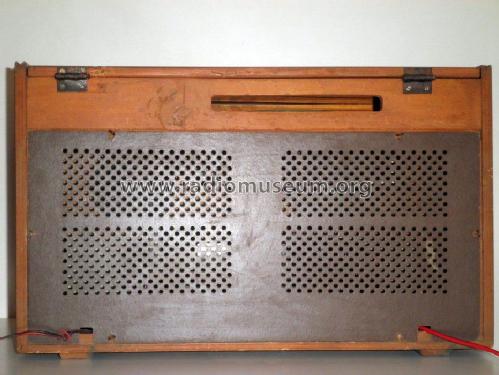

• Model: Gavia 586/9F - Minerva Ital-Minerva; Milano

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 580 x 354 x 340 mm / 22.8 x 13.9 x 13.4 inch

• Notes
• 2 altoparlanti magnetodinamici di 13 e 16 cm di diametro.

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Price in first year of sale
• 85,000.00 ITL

• Source of data
• Guida Pratica Antique Radio II (2000)

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
