For model Gloriette W W50+W25P, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien:
Minerva Gloriette

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1932 Category: Broadcast Receiver - or past WW2 Tuner

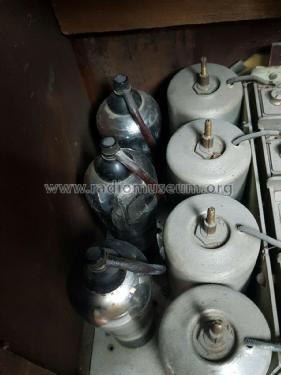

Valves / Tubes 5: E452T E452T E452T C443 506
Main principle TRF without regeneration; 2 Special; 1 AF stage(s)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Gloriette W W50+W25P - Minerva-Radio Radiola-
Material Wooden case

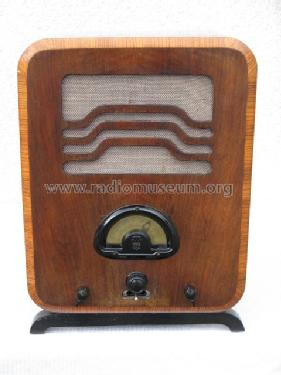

Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 370 x 500 x 250 mm / 14.6 x 19.7 x 9.8 inch
Notes Bandfilter;4fach Drehko
Net weight (2.2 lb = 1 kg) 12.3 kg / 27 lb 1.5 oz (27.093 lb)
Price in first year of sale 550.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange + Schenk
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
