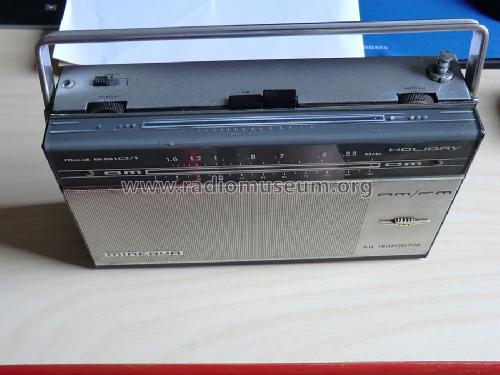

Holiday 6510/1
Minerva (Ital-Minerva); Milano
- Country
- Italy
- Manufacturer / Brand
- Minerva (Ital-Minerva); Milano
- Year
- 1965 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 174711
-
- alternative name: Cozzi Luigi Dell'Aquila
- Number of Transistors
- 10
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 125; 140; 160; 220 / 2 x 4,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.2 cm = 4 inch
- Power out
- 1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Holiday 6510/1 - Minerva Ital-Minerva; Milano
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 256 x 152 x 70 mm / 10.1 x 6 x 2.8 inch
- Notes

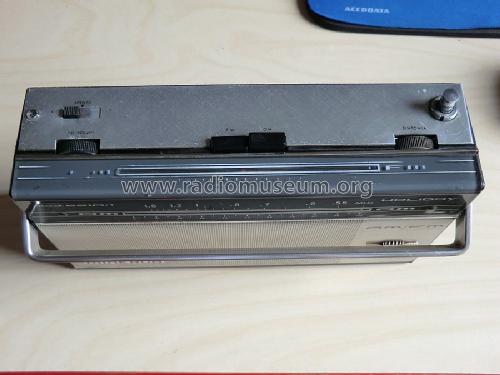

- Sockets for external antenna and headphone / speaker. Selector power supply / battery power. Switch on / off on the volume knob. Small light to indicate that the radio is on.
Prese per antenna esterna e per cuffia/ altoparlante. Selettore alimentazione elettrica/ alimentazione a pile. Interruttore di accensione/ spegnimento sulla manopola del volume. Lucetta spia del funzionamento.
- Price in first year of sale
- 29,900.00 ITL
- Mentioned in
- Catalogo ANIE 1965-66
- Author
- Model page created by Eduard Abfalterer. See "Data change" for further contributors.
