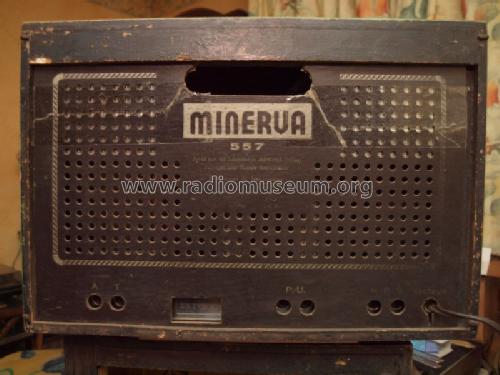

557 ébénisterie gainée

Minerva Radio; Paris

  • Year
  • 1956/1957
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 187484

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110/240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
  • Power out
  • 2 W (unknown quality)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: 557 [ébénisterie gainée] - Minerva Radio; Paris
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 370 x 260 x 200 mm / 14.6 x 10.2 x 7.9 inch
  • Author
  • Model page created by J Francois BERTRAND. See "Data change" for further contributors.
