Minola Cordless 603 Nr. 684601–705300

Minola Cordless 603; Minerva-Radio (ID = 20072) Radio

Minola Cordless 603; Minerva-Radio (ID = 879200) Radio

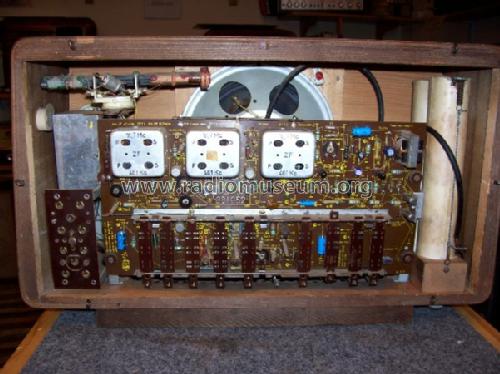

Minola Cordless 603; Minerva-Radio (ID = 395365) Radio Minola Cordless 603; Minerva-Radio (ID = 395366) Radio
Minola Cordless 603; Minerva-Radio (ID = 395372) Radio Minola Cordless 603; Minerva-Radio (ID = 65714) Radio
Minola Cordless 603; Minerva-Radio (ID = 395368) Radio Minola Cordless 603; Minerva-Radio (ID = 395370) Radio
Use red slider bar for more.
Minola Cordless 603; Minerva-Radio (ID = 395365) Radio
Minerva-Radio: Minola Cordless 603 [Radio] ID = 395365 601x450
Select picture or schematic to display from thumbnails on the right and click for download.
For model Minola Cordless 603 Nr. 684601–705300, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: OC171 OC171 OC170 OC170 OC170 OC75 OC75 OC74 OC74 OA79 RL232
Main principle Superheterodyne (common); ZF/IF 461/10700 kHz
Tuned circuits 8 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: Minola Cordless 603 [Nr. 684601–705300] - Minerva-Radio Radiola-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 440 x 260 x 190 mm / 17.3 x 10.2 x 7.5 inch
Net weight (2.2 lb = 1 kg) 4.6 kg / 10 lb 2.1 oz (10.132 lb)
Price in first year of sale 1'995.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
Mentioned in RADIOBOTE, Österr. (Heft 34/2011, S.18 ff, Gerätebeschreibung)


All listed radios etc. from Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Here you find 627 models, 559 with images and 444 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
