Mirando 681-L

Mirando 681-L; Minerva-Radio (ID = 20060) Radio

Mirando 681-L; Minerva-Radio (ID = 889275) Radio

Mirando 681-L; Minerva-Radio (ID = 889276) Radio
Mirando 681-L; Minerva-Radio (ID = 687139) Radio Mirando 681-L; Minerva-Radio (ID = 687134) Radio
Mirando 681-L; Minerva-Radio (ID = 687137) Radio Mirando 681-L; Minerva-Radio (ID = 65725) Radio
Mirando 681-L; Minerva-Radio (ID = 259072) Radio Mirando 681-L; Minerva-Radio (ID = 687135) Radio
Mirando 681-L; Minerva-Radio (ID = 687136) Radio Mirando 681-L; Minerva-Radio (ID = 687138) Radio

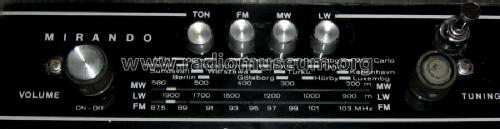

Mirando 681-L; Minerva-Radio (ID = 849259) Radio Mirando 681-L; Minerva-Radio (ID = 849261) Radio
Use red slider bar for more.
Mirando 681-L; Minerva-Radio (ID = 687139) Radio
Minerva-Radio: Mirando 681-L [Radio] ID = 687139 781x641
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mirando 681-L, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1967/1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: BF115 BF115 BF184 BF184 BF184 BC108 BC108 AC127 AC128
Main principle Superheterodyne (common); ZF/IF 461/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 6x1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Mirando 681-L - Minerva-Radio Radiola-
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 230 x 140 x 65 mm / 9.1 x 5.5 x 2.6 inch
Notes Anschluß für ext. Netzgerät (DC-9 Volt) und Autoantenne vorhanden
Net weight (2.2 lb = 1 kg) 1.4 kg / 3 lb 1.3 oz (3.084 lb)
Price in first year of sale 1'220.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb


All listed radios etc. from Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Here you find 627 models, 558 with images and 447 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
