Mirella 612 blau

Mirella 612; Minerva-Radio (ID = 110412) Radio

Mirella 612; Minerva-Radio (ID = 110413) Radio
Mirella 612; Minerva-Radio (ID = 252821) Radio Mirella 612; Minerva-Radio (ID = 453828) Radio
Mirella 612; Minerva-Radio (ID = 74265) Radio Mirella 612; Minerva-Radio (ID = 25725) Radio
Mirella 612; Minerva-Radio (ID = 25724) Radio Mirella 612; Minerva-Radio (ID = 25726) Radio
Mirella 612; Minerva-Radio (ID = 116202) Radio Mirella 612; Minerva-Radio (ID = 32449) Radio
Mirella 612; Minerva-Radio (ID = 833290) Radio Mirella 612; Minerva-Radio (ID = 964154) Radio
Use red slider bar for more.

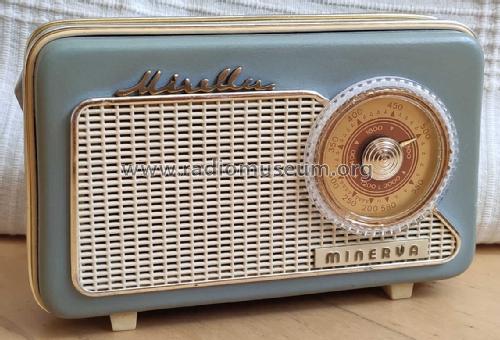

Mirella 612; Minerva-Radio (ID = 252821) Radio
Minerva-Radio: Mirella 612 [Radio] ID = 252821 733x539
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mirella 612 blau, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1961–1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: OC169 or. AF117 OC169 or. AF117 OC169 or. AF117 OC75 OC74 OC74
Main principle Super-Heterodyne (Super in general); ZF/IF 461 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 2 x 3 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out
from Radiomuseum.org Model: Mirella 612 [blau] - Minerva-Radio Radiola-
Material Leather / canvas / plastic - over other material
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 170 x 100 x 40 mm / 6.7 x 3.9 x 1.6 inch
Notes Allgemeine technische Information auch beim Basismodell

Es gibt folgende Farbvarianten: grün, grün Leinen, grau, rot gepolstert, rot hart, blau, schwarz gepolstert, schwarz hart, braun Leinen, braun Leder imitiert.
Price in first year of sale 795.00 ATS
Collectors' prices
Source of data Radiokatalog Band 2, Ernst Erb

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
