• Year
  • 1961–1966
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 79280

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 461 kHz
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Dry Batteries / 2 x 3 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org

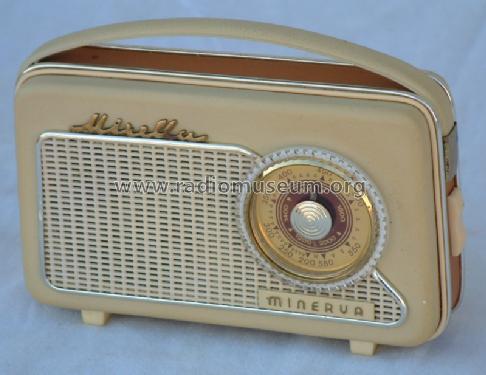

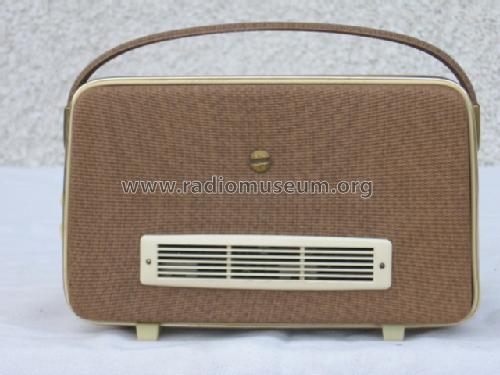

  • Model: Mirella 612 [braun Leinen] - Minerva-Radio Radiola-
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 170 x 100 x 40 mm / 6.7 x 3.9 x 1.6 inch
  • Notes
  • Allgemeine technische Information auch beim Basismodell

    Es gibt folgende Farbvarianten: grün, grün Leinen, grau, rot gepolstert, rot hart, blau, schwarz gepolstert, schwarz hart, braun Leinen, braun Leder imitiert.
  • Price in first year of sale
  • 795.00 ATS
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
