Mirella (Basismodell) 672 Nr. 1.143.051–1.197.250

Mirella 672; Minerva-Radio (ID = 6647) Radio

Mirella 672; Minerva-Radio (ID = 132261) Radio

Mirella 672; Minerva-Radio (ID = 453905) Radio
Mirella 672; Minerva-Radio (ID = 57684) Radio
Use red slider bar for more.
Mirella 672; Minerva-Radio (ID = 57684) Radio
Minerva-Radio: Mirella 672 [Radio] ID = 57684 338x265
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mirella (Basismodell) 672 Nr. 1.143.051–1.197.250, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien:
Minerva Mirella 672

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1966/1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: AF127 AF127 AF127 BC108 BC108 AC127 AC128
Main principle Superheterodyne (common); ZF/IF 461 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 2 x 3 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out 0.15 W (unknown quality)
from Radiomuseum.org Model: Mirella 672 [Nr. 1.143.051–1.197.250] - Minerva-Radio Radiola-
Material Leather / canvas / plastic - over other material
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 170 x 100 x 40 mm / 6.7 x 3.9 x 1.6 inch
Notes Diese Seite enthält allgemeine Informationen, die für alle Varianten des Typs 672 gelten. Bilder nur, wenn technisch wichtig.

Farbvarianten bitte nur zum entsprechenden Modell laden!

Net weight (2.2 lb = 1 kg) 0.7 kg / 1 lb 8.7 oz (1.542 lb)
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

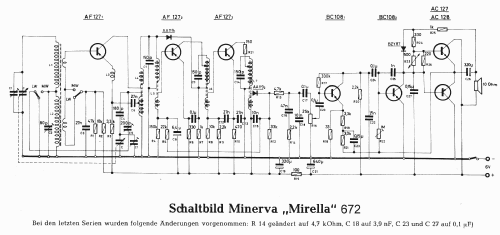

Literature/Schematics (1) -- Original-techn. papers.
