MKS 20

MKS 20; Minerva-Radio (ID = 2370219) Radio MKS 20; Minerva-Radio (ID = 2370221) Radio
MKS 20; Minerva-Radio (ID = 2370218) Radio MKS 20; Minerva-Radio (ID = 2370223) Radio
MKS 20; Minerva-Radio (ID = 1184004) Radio MKS 20; Minerva-Radio (ID = 1184005) Radio
MKS 20; Minerva-Radio (ID = 1184007) Radio MKS 20; Minerva-Radio (ID = 1184008) Radio
MKS 20; Minerva-Radio (ID = 1184009) Radio MKS 20; Minerva-Radio (ID = 1184011) Radio
Use red slider bar for more.
MKS 20; Minerva-Radio (ID = 2370219) Radio
Minerva-Radio: MKS 20 [Radio] ID = 2370219 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model MKS 20, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1984/1985 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF ? /10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player

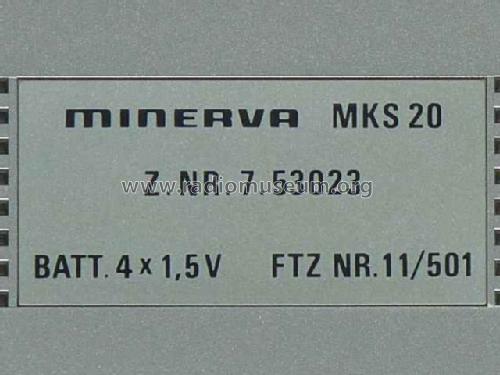

Power type and voltage Batteries / addl. power jack / 4 x 1,5 / 6 Volt
Loudspeaker 2 Loudspeakers / Ø 6 cm = 2.4 inch
Power out
from Radiomuseum.org Model: MKS 20 - Minerva-Radio Radiola-
Material Metal case

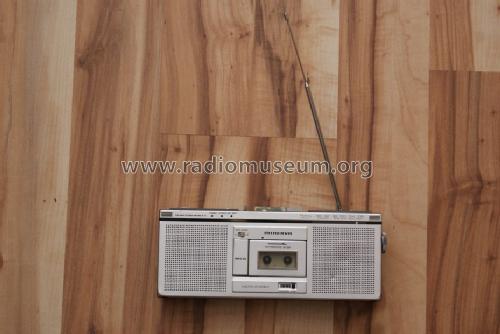

Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 235 x 95 x 40 mm / 9.3 x 3.7 x 1.6 inch
Notes Koffergerät mit Stereo-Recorder (A & W). Betrieb mit Microcassetten.
2 Bandgeschwindigkeiten, 1,2 und 2,4 cm/sek. Bandzählwerk. 2 eingebaute Mikrofone. Anschlußmöglichkeit für 2 externe Mikrofone (3,5 cm Klinke), Stereo-Kopfhörer (3,5 cm Klinke) und externe Stromversorgung 6 Volt (Hohlstecker, Achtung: Minuspol innen!).
Net weight (2.2 lb = 1 kg) 0.630 kg / 1 lb 6.2 oz (1.388 lb)
Price in first year of sale 99.00 DM

Model page created by Frank Rüthlein. See "Data change" for further contributors.
