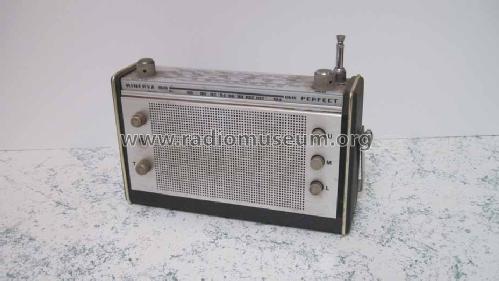

Perfect 642A Nr.: 1.112.451 - 1.188.050

Perfect 642A; Minerva-Radio (ID = 6649) Radio

Perfect 642A; Minerva-Radio (ID = 294556) Radio
Perfect 642A; Minerva-Radio (ID = 315174) Radio Perfect 642A; Minerva-Radio (ID = 1774207) Radio
Perfect 642A; Minerva-Radio (ID = 294555) Radio Perfect 642A; Minerva-Radio (ID = 484698) Radio
Perfect 642A; Minerva-Radio (ID = 740233) Radio Perfect 642A; Minerva-Radio (ID = 1011005) Radio
Perfect 642A; Minerva-Radio (ID = 1497296) Radio Perfect 642A; Minerva-Radio (ID = 1774208) Radio
Perfect 642A; Minerva-Radio (ID = 1774209) Radio
Use red slider bar for more.
Perfect 642A; Minerva-Radio (ID = 315174) Radio
Minerva-Radio: Perfect 642A [Radio] ID = 315174 649x506
Select picture or schematic to display from thumbnails on the right and click for download.
For model Perfect 642A Nr.: 1.112.451 - 1.188.050, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien:
Minerva Perfekt 652

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1965/1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF106 AF125 AF126 AF126 AF126 AC126 AC126 AC127 AC128
Main principle Superheterodyne (common); ZF/IF 461/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 8 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Perfect 642A [Nr.: 1.112.451 - 1.188.050] - Minerva-Radio Radiola-
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 230 x 140 x 62 mm / 9.1 x 5.5 x 2.4 inch
Notes 642A ist die richtige Bezeichnung dieses Gerätes. Durch einen Druckfehler auf der Serviceanleitung auch angelegt als Perfekt 652.
Net weight (2.2 lb = 1 kg) 1.6 kg / 3 lb 8.4 oz (3.524 lb)
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in RADIOBOTE, Österr. (Heft 14/2008, S.17 ff, Gerätebeschreibung)
Literature/Schematics (1) -- Original-techn. papers.
