Pocket 514/1

Pocket 514/1; Minerva-Radio (ID = 71815) Radio
Pocket 514/1; Minerva-Radio (ID = 71814) Radio Pocket 514/1; Minerva-Radio (ID = 1852338) Radio
Pocket 514/1; Minerva-Radio (ID = 1852339) Radio Pocket 514/1; Minerva-Radio (ID = 1852345) Radio
Pocket 514/1; Minerva-Radio (ID = 1852350) Radio
Use red slider bar for more.
Pocket 514/1; Minerva-Radio (ID = 71814) Radio

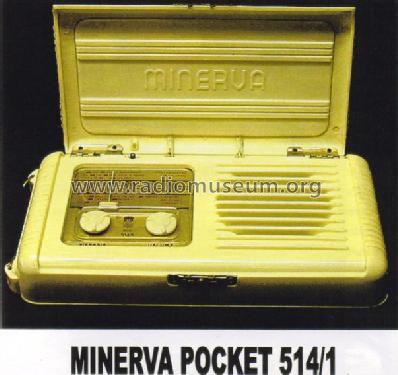

Minerva-Radio: Pocket 514/1 [Radio] ID = 71814 604x568
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pocket 514/1, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien:
Bildquelle Museumsbote Nr. 103

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK91 DF91 DAF91 DL92
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out
from Radiomuseum.org Model: Pocket 514/1 - Minerva-Radio Radiola-
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 250 x 125 x 65 mm / 9.8 x 4.9 x 2.6 inch
Notes nur in Italien für Italien gebaut [MB0003SB]; elfenbeinfarbig
Net weight (2.2 lb = 1 kg) 1.3 kg / 2 lb 13.8 oz (2.863 lb)
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Museums Bote, Österr. (Heft 103/2000, S.9 ff, Gerätebeschreibung)
