Riviera 652 Nr. 1.038.351–1.132.350

Riviera 652; Minerva-Radio (ID = 6650) Radio

Riviera 652; Minerva-Radio (ID = 888675) Radio

Riviera 652; Minerva-Radio (ID = 888674) Radio

Riviera 652; Minerva-Radio (ID = 888676) Radio
Riviera 652; Minerva-Radio (ID = 2013402) Radio Riviera 652; Minerva-Radio (ID = 2013403) Radio
Riviera 652; Minerva-Radio (ID = 2013406) Radio Riviera 652; Minerva-Radio (ID = 2013405) Radio
Riviera 652; Minerva-Radio (ID = 2013404) Radio Riviera 652; Minerva-Radio (ID = 21259) Radio
Use red slider bar for more.
Riviera 652; Minerva-Radio (ID = 2013402) Radio
Minerva-Radio: Riviera 652 [Radio] ID = 2013402 1400x1181
Select picture or schematic to display from thumbnails on the right and click for download.
For model Riviera 652 Nr. 1.038.351–1.132.350, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1963/1964 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF106 AF125 AF126 AF126 AF126 AC126 AC126 AC128 AC128
Main principle Superheterodyne (common); ZF/IF 461/10700 kHz
Tuned circuits 8 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 6x1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out 1.2 W (undistorted)
from Radiomuseum.org Model: Riviera 652 [Nr. 1.038.351–1.132.350] - Minerva-Radio Radiola-
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 300 x 190 x 90 mm / 11.8 x 7.5 x 3.5 inch
Net weight (2.2 lb = 1 kg) 3.1 kg / 6 lb 13.3 oz (6.828 lb)
External source of data E. Erb 3-907007-36-0
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb


All listed radios etc. from Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Here you find 627 models, 559 with images and 444 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.





Forum contributions about this model
Minerva-Radio: Riviera 652
Threads: 1 | Posts: 1
Hits: 936     Replies: 0
minerva: Exportversion Riviera 652
Wolfgang Grafeneder
16.Jul.16
  1

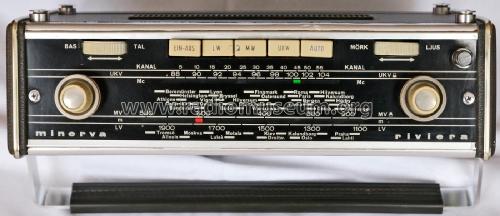

Das abgebildete Gerät ist offenbar eine Exportversion - Skala und Regler sind schwedisch beschriftet.

Liebe Grüße

Wolfgang Grafeneder


Minerva-Radio: Riviera 652
