FM - MW 2 Band Radio RS50

FM - MW 2 Band Radio RS50; Minerva-Radio (ID = 1945874) Radio FM - MW 2 Band Radio RS50; Minerva-Radio (ID = 1945875) Radio
FM - MW 2 Band Radio RS50; Minerva-Radio (ID = 1945876) Radio FM - MW 2 Band Radio RS50; Minerva-Radio (ID = 1945878) Radio
FM - MW 2 Band Radio RS50; Minerva-Radio (ID = 1945879) Radio FM - MW 2 Band Radio RS50; Minerva-Radio (ID = 553923) Radio
Use red slider bar for more.
FM - MW 2 Band Radio RS50; Minerva-Radio (ID = 1945874) Radio
Minerva-Radio: FM - MW 2 Band Radio RS50 [Radio] ID = 1945874 900x765
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM - MW 2 Band Radio RS50, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1983 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / AA: 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out 0.12 W (unknown quality)
from Radiomuseum.org Model: FM - MW 2 Band Radio RS50 - Minerva-Radio Radiola-
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 140 x 80 x 40 mm / 5.5 x 3.1 x 1.6 inch
Notes

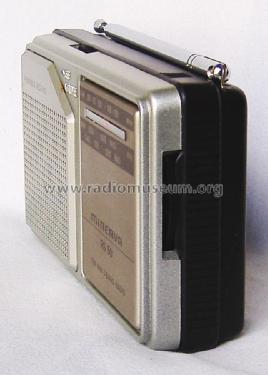

2 Band Taschenradio mit schwenkbarer Teleskopantenne und Lautstärke/Ein/Aus oben; Abstimmung links; Bereichschalter rückseitig und 3,5mm Ohrhöreranschluss rechts.

Empfangsbereiche:
FM: 86,5 - 108MHz,
MW: 535 - 1620kHz.

Net weight (2.2 lb = 1 kg) 0.242 kg / 0 lb 8.5 oz (0.533 lb)

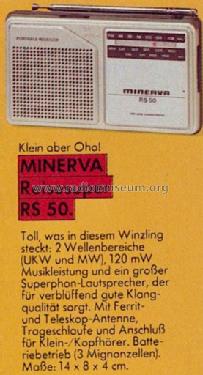

Mentioned in -- Original prospect or advert ((A) Katalog: Minerva Eine Klasse für sich ~1983)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Here you find 627 models, 558 with images and 447 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
