Super 5 5W (W5)

Super 5 5W ; Minerva-Radio (ID = 2386396) Radio Super 5 5W ; Minerva-Radio (ID = 2386397) Radio
Super 5 5W ; Minerva-Radio (ID = 58689) Radio Super 5 5W ; Minerva-Radio (ID = 298152) Radio
Super 5 5W ; Minerva-Radio (ID = 1997) Radio Super 5 5W ; Minerva-Radio (ID = 298151) Radio
Super 5 5W ; Minerva-Radio (ID = 298153) Radio Super 5 5W ; Minerva-Radio (ID = 629354) Radio
Super 5 5W ; Minerva-Radio (ID = 629356) Radio Super 5 5W ; Minerva-Radio (ID = 629359) Radio
Use red slider bar for more.
Super 5 5W ; Minerva-Radio (ID = 2386396) Radio

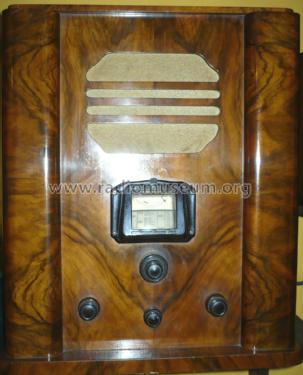

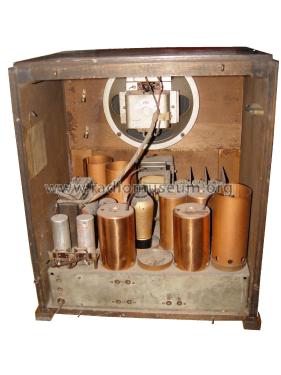

Minerva-Radio: Super 5 5W [Radio] ID = 2386396 1400x1830
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super 5 5W (W5), Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: E446 E447 E447 E444 E443H 1805
Main principle Superheterodyne (common); ZF/IF 128 kHz
Tuned circuits 9 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 100-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Super 5 5W - Minerva-Radio Radiola-
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 435 x 495 x 315 mm / 17.1 x 19.5 x 12.4 inch
Notes Abst.Anz.;ZF128,5
Net weight (2.2 lb = 1 kg) 21.5 kg / 47 lb 5.7 oz (47.357 lb)
Price in first year of sale 650.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange + Schenk
Mentioned in Radio-Amateur Wien (RA, 46), (Österreichischer Radio Amateur, ÖRA) (3312)
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
