• Year
  • 1966
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 84291

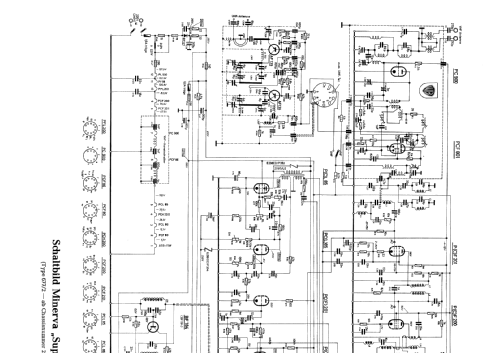

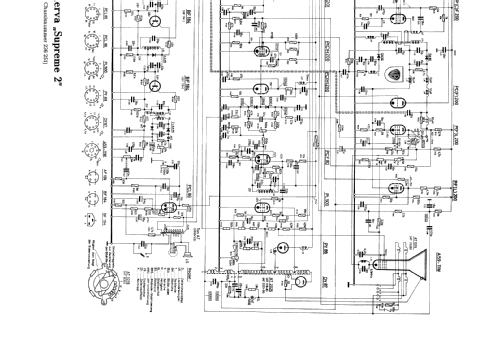

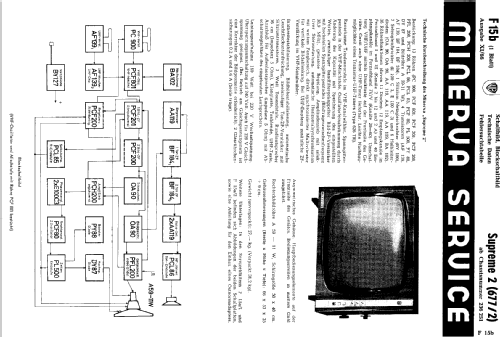

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 13
  • Number of Transistors
  • 4
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • AC/DC-set / 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
  • Power out
  • 3 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Supreme 2 677/2 [Nr.>236251] - Minerva-Radio Radiola-
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 660 x 530 x 340 mm / 26 x 20.9 x 13.4 inch
  • Notes
  • Fernsehband I und III (Kanäle 2-12 und 2A), Band IV/V (Kanäle 21-60). 23-Zoll-Bildschirm.
  • Net weight (2.2 lb = 1 kg)
  • 27 kg / 59 lb 7.5 oz (59.471 lb)
  • Source of data
  • -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
