TR-310 Nr. bis 200001

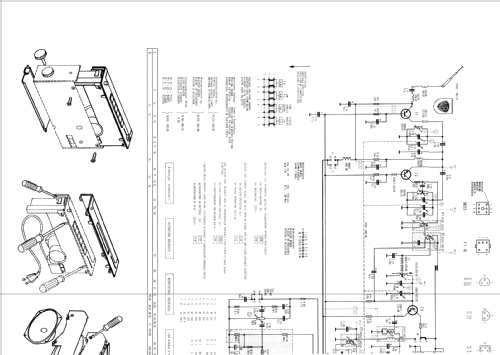

TR-310; Minerva-Radio (ID = 294731) Radio

TR-310; Minerva-Radio (ID = 294732) Radio

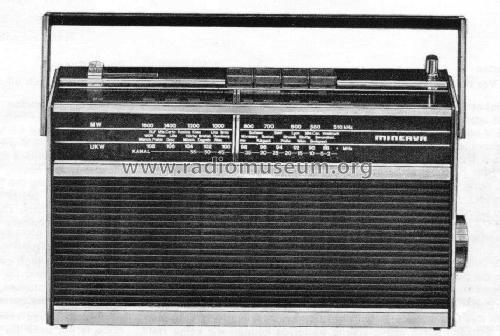

TR-310; Minerva-Radio (ID = 1776405) Radio TR-310; Minerva-Radio (ID = 188720) Radio
TR-310; Minerva-Radio (ID = 1776406) Radio TR-310; Minerva-Radio (ID = 1776407) Radio
TR-310; Minerva-Radio (ID = 1776408) Radio TR-310; Minerva-Radio (ID = 1776409) Radio
TR-310; Minerva-Radio (ID = 1776410) Radio TR-310; Minerva-Radio (ID = 1881675) Radio
TR-310; Minerva-Radio (ID = 2228017) Radio
Use red slider bar for more.
TR-310; Minerva-Radio (ID = 1776405) Radio
Minerva-Radio: TR-310 [Radio] ID = 1776405 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model TR-310 Nr. bis 200001, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: BF341 BF241 BF241 BF241 BF240 BC309 BC238 BC238 AC187 AC188
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: TR-310 [Nr. bis 200001] - Minerva-Radio Radiola-
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 290 x 168 x 66 mm / 11.4 x 6.6 x 2.6 inch
Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.



All listed radios etc. from Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Here you find 627 models, 559 with images and 444 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
