• Country
• Soviet Union

• Manufacturer / Brand
• Minsk Radio Works; Minsk

• Year
• 1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 116454

• • alternative name: Industrial Union Horizont || Minsk Works "Kalibr"

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 6Н3П 6К4П 6И1П 6К4П 6Е5С 6К4П 6Х2П 6Н2П 6Н2П 6П14П 6П14П

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 8 AM circuit(s)     6 FM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Družba {Дружба} - Minsk Radio Works; Minsk

• Shape

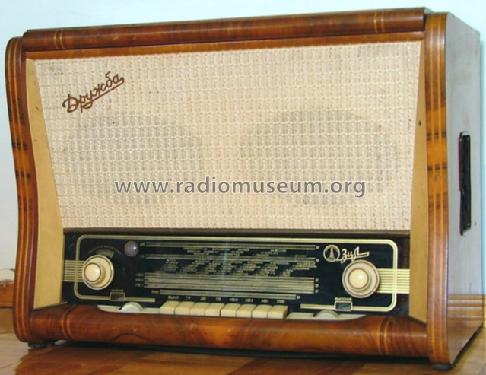

• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 625 x 450 x 365 mm / 24.6 x 17.7 x 14.4 inch

• Notes
• Prototype was 1956 radio set "Liuks" from Riga VEF, Latvia - see in RMorg.

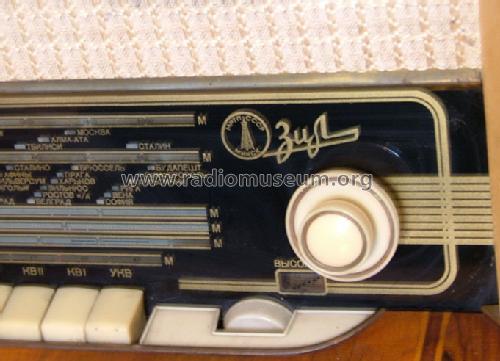

  Coverage LW, MW, three SW bands and FM 64,5···73 MHz (4,65-4,11 m).

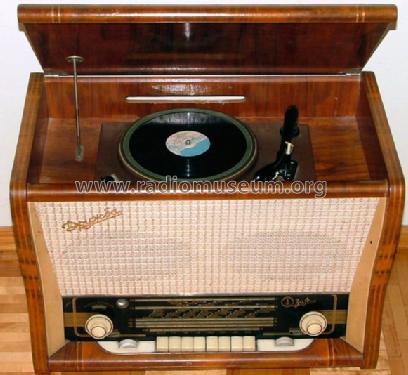

  Record player for 33 and 78 rpm.
  4 loudspeakers, 2×5 W in front and 1 W in both sides.

• Net weight (2.2 lb = 1 kg)
• 27 kg / 59 lb 7.5 oz (59.471 lb)

• Mentioned in
• -- Collector info (Sammler)

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
