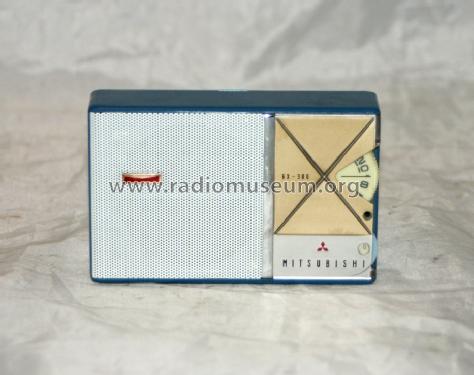

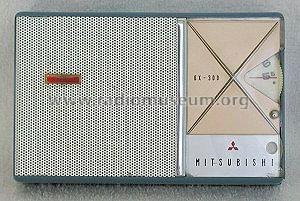

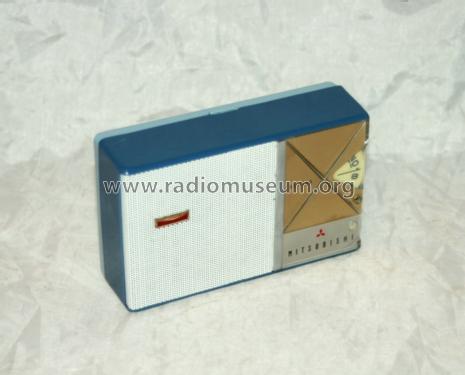

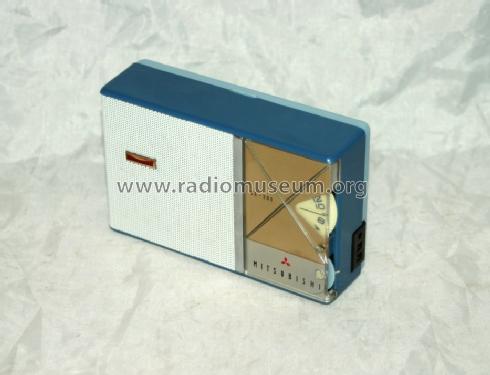

6 X-300
Use red slider bar for more.
Mitsubishi Electric: 6 X-300 [Radio] ID = 566019 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1968 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||

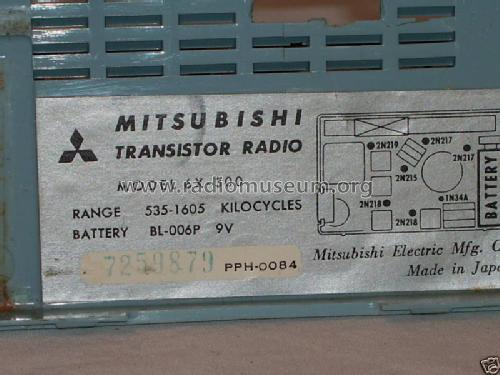

| Semiconductors (the count is only for transistors) | 6: 2N218 2N218 2N219 2N217 2N217 2N215 1N34A |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | Dry Batteries / 9 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: 6 X-300 - Mitsubishi Electric |
| Material | Plastics (no bakelite or catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 4.4 x 2.8 x 1.25 inch / 112 x 71 x 32 mm |
| Notes | Mitsubishi 6X-300;

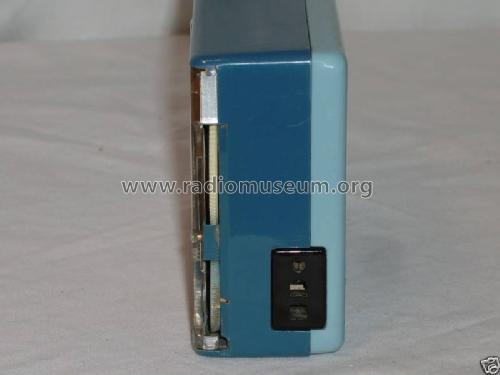

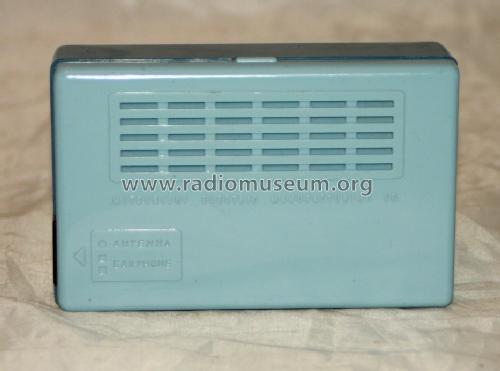

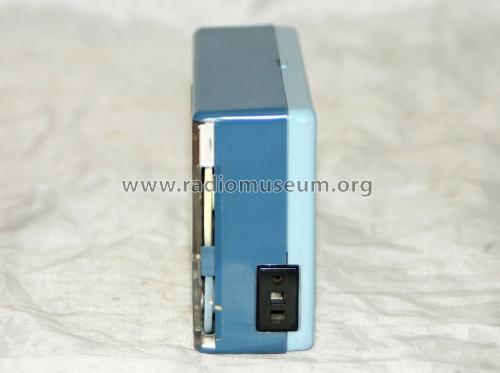

antenna & earphones jack, made in Japan. |
| Mentioned in | -- Collector info (Sammler) |
Model page created by Peter Hoddow. See "Data change" for further contributors.
