Portable Television - Televisore portatile T40

Portable Television - Televisore portatile T40; Mivar VAR; Milano (ID = 2112533) Television Portable Television - Televisore portatile T40; Mivar VAR; Milano (ID = 2112534) Television

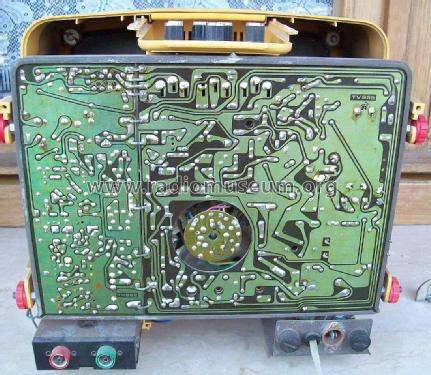

Portable Television - Televisore portatile T40; Mivar VAR; Milano (ID = 2112535) Television Portable Television - Televisore portatile T40; Mivar VAR; Milano (ID = 2112536) Television
Portable Television - Televisore portatile T40; Mivar VAR; Milano (ID = 2112537) Television Portable Television - Televisore portatile T40; Mivar VAR; Milano (ID = 2112538) Television
Use red slider bar for more.
Portable Television - Televisore portatile T40; Mivar VAR; Milano (ID = 2112533) Television
Mivar VAR; Milano: Portable Television - Televisore portatile T40 [Television] ID = 2112533 680x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model Portable Television - Televisore portatile T40, Mivar (VAR); Milano

Country:  Italy
Manufacturer / Brand:  Mivar (VAR); Milano
Year: 1974 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: A31-19W
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Line / Storage batteries (perhaps also batteries) / 220 / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Portable Television - Televisore portatile T40 - Mivar VAR; Milano
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 310 x 275 x 280 mm / 12.2 x 10.8 x 11 inch
Notes

Cathode ray tube 12" ITT type A31-19W

Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)

Model page created by Giuseppe Feniello. See "Data change" for further contributors.
