R32

R32; Mivar VAR; Milano (ID = 363697) Radio

R32; Mivar VAR; Milano (ID = 363698) Radio
R32; Mivar VAR; Milano (ID = 1196295) Radio R32; Mivar VAR; Milano (ID = 363090) Radio
R32; Mivar VAR; Milano (ID = 2219740) Radio R32; Mivar VAR; Milano (ID = 2219741) Radio

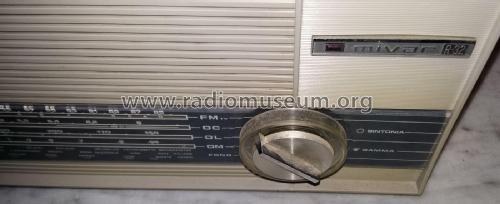

R32; Mivar VAR; Milano (ID = 2219742) Radio R32; Mivar VAR; Milano (ID = 2219743) Radio
Use red slider bar for more.
R32; Mivar VAR; Milano (ID = 1196295) Radio
Mivar VAR; Milano: R32 [Radio] ID = 1196295 640x294
Select picture or schematic to display from thumbnails on the right and click for download.
For model R32, Mivar (VAR); Milano

Country:  Italy
Manufacturer / Brand:  Mivar (VAR); Milano
Year: 1967/1968 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECC85 ECH81 EF89 ECL86
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 2 AM circuit(s)     1 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: R32 - Mivar VAR; Milano
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 450 x 185 x 135 mm / 17.7 x 7.3 x 5.3 inch
Notes Raddrizzatore BY123; diodi OA91, 2× AA119.
Presa fono e registratore a nastro. Riceve anche gamma audio TV.
Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)
Source of data Guida Pratica Antique Radio V (2003)

Model page created by Franco Antolini. See "Data change" for further contributors.



All listed radios etc. from Mivar (VAR); Milano
Here you find 117 models, 107 with images and 68 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
