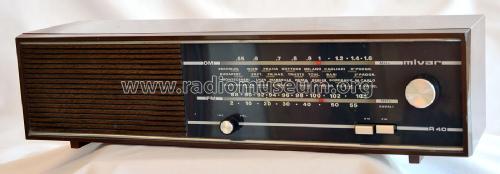

R40; Mivar VAR; Milano (ID = 2511428) Radio
Mivar VAR; Milano: R40 [Radio] ID = 2511428 1400x488
Select picture or schematic to display from thumbnails on the right and click for download.
For model R40, Mivar (VAR); Milano

Country:  Italy
Manufacturer / Brand:  Mivar (VAR); Milano
Year: 1969/1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: BF195 BF195 BF195 BF195 BF195 BC148 BC158 AC187 AC188 B30C250 AA119 AA119 AA119 AA119 BZY88
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 125/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 9 cm = 3.5 inch
Power out 2.5 W (undistorted)
from Radiomuseum.org Model: R40 - Mivar VAR; Milano
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 440 x 120 x 120 mm / 17.3 x 4.7 x 4.7 inch
Notes

Transistori AC187K, AC188K

Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)
Price in first year of sale 26.40 LIT
Mentioned in -- Original prospect or advert

Model page created by Gabriele Baldan. See "Data change" for further contributors.
