R402

R402; Mivar VAR; Milano (ID = 470798) Radio R402; Mivar VAR; Milano (ID = 1339196) Radio

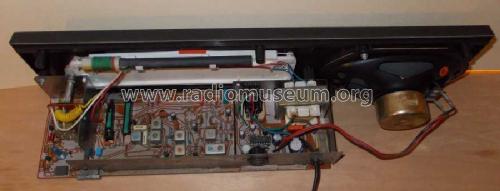

R402; Mivar VAR; Milano (ID = 1339198) Radio R402; Mivar VAR; Milano (ID = 1339199) Radio
Use red slider bar for more.
R402; Mivar VAR; Milano (ID = 470798) Radio
Mivar VAR; Milano: R402 [Radio] ID = 470798 640x272
Select picture or schematic to display from thumbnails on the right and click for download.
For model R402, Mivar (VAR); Milano

Country:  Italy
Manufacturer / Brand:  Mivar (VAR); Milano
Year: 1982/1983 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 5: BF255 BF255 BF253 BF253 BF253 TDA1905 B20C300
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: R402 - Mivar VAR; Milano
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 440 x 120 x 120 mm / 17.3 x 4.7 x 4.7 inch
Notes

Antenna interna in ferrite per OM.

Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)
Source of data -- Original prospect or advert

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
