R40B

R40B; Mivar VAR; Milano (ID = 2085546) Radio R40B; Mivar VAR; Milano (ID = 2085547) Radio
R40B; Mivar VAR; Milano (ID = 2085548) Radio R40B; Mivar VAR; Milano (ID = 2085549) Radio
R40B; Mivar VAR; Milano (ID = 2085550) Radio R40B; Mivar VAR; Milano (ID = 2085552) Radio
R40B; Mivar VAR; Milano (ID = 2085553) Radio R40B; Mivar VAR; Milano (ID = 2085554) Radio
Use red slider bar for more.
R40B; Mivar VAR; Milano (ID = 2085546) Radio
Mivar VAR; Milano: R40B [Radio] ID = 2085546 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model R40B, Mivar (VAR); Milano

Country:  Italy
Manufacturer / Brand:  Mivar (VAR); Milano
Year: 1976 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 5: BF255 BF255 BF233 BF253 BF233 TAA611 B30C400
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: R40B - Mivar VAR; Milano
Material Plastics (no bakelite or catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 430 x 100 x 120 mm / 16.9 x 3.9 x 4.7 inch
Notes

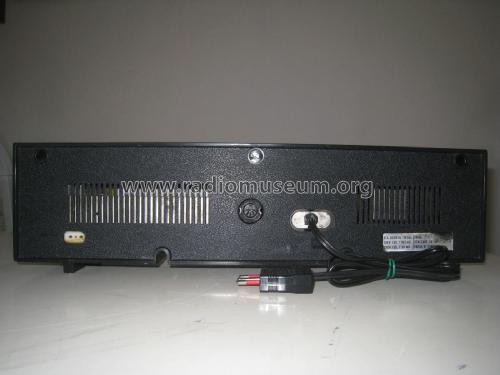

MIVAR mod. R40B - controllo volume - uscita tape sul retro dell'apparecchio - antenna interna in ferrite per OM - presa antenna esterna FM - consumo 7 watt - frequenza: OM 550/1600 kHz - FM 88/108 MHz.

Made in Italy.

Net weight (2.2 lb = 1 kg) 1.750 kg / 3 lb 13.7 oz (3.855 lb)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
