R421

R421; Mivar VAR; Milano (ID = 2355092) Radio

R421; Mivar VAR; Milano (ID = 2355098) Radio

R421; Mivar VAR; Milano (ID = 2355099) Radio
R421; Mivar VAR; Milano (ID = 2508417) Radio R421; Mivar VAR; Milano (ID = 2508419) Radio

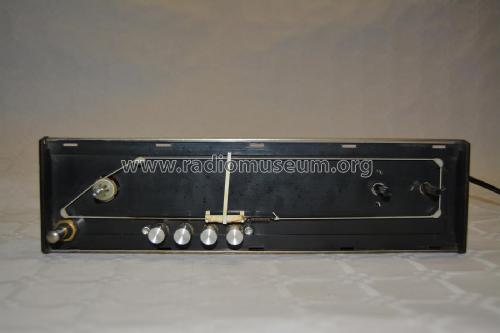

R421; Mivar VAR; Milano (ID = 2508418) Radio R421; Mivar VAR; Milano (ID = 2508420) Radio

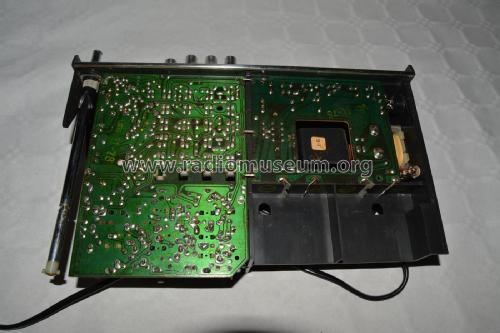

R421; Mivar VAR; Milano (ID = 2508421) Radio R421; Mivar VAR; Milano (ID = 836900) Radio
R421; Mivar VAR; Milano (ID = 836903) Radio R421; Mivar VAR; Milano (ID = 836905) Radio
R421; Mivar VAR; Milano (ID = 836906) Radio R421; Mivar VAR; Milano (ID = 836907) Radio
Use red slider bar for more.
R421; Mivar VAR; Milano (ID = 2508417) Radio
Mivar VAR; Milano: R421 [Radio] ID = 2508417 1400x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model R421, Mivar (VAR); Milano

Country:  Italy
Manufacturer / Brand:  Mivar (VAR); Milano
Year: 1978 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 5: BF255 BF255 BF253 BF253 BF253 TAA611 1N542 1N542 1N542 BZX83 B30C250
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 2 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: R421 - Mivar VAR; Milano
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 315 x 205 x 80 mm / 12.4 x 8.1 x 3.1 inch
Net weight (2.2 lb = 1 kg) 2.3 kg / 5 lb 1.1 oz (5.066 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Felice Nicolini. See "Data change" for further contributors.



All listed radios etc. from Mivar (VAR); Milano
Here you find 117 models, 105 with images and 67 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
