Rodi UCM581

Rodi UCM581; Mivar VAR; Milano (ID = 367252) Radio

Rodi UCM581; Mivar VAR; Milano (ID = 367253) Radio

Rodi UCM581; Mivar VAR; Milano (ID = 367254) Radio

Rodi UCM581; Mivar VAR; Milano (ID = 1357189) Radio
Rodi UCM581; Mivar VAR; Milano (ID = 2440680) Radio Rodi UCM581; Mivar VAR; Milano (ID = 2440682) Radio
Rodi UCM581; Mivar VAR; Milano (ID = 2440681) Radio Rodi UCM581; Mivar VAR; Milano (ID = 2440683) Radio
Rodi UCM581; Mivar VAR; Milano (ID = 2440686) Radio Rodi UCM581; Mivar VAR; Milano (ID = 2440684) Radio
Rodi UCM581; Mivar VAR; Milano (ID = 2440685) Radio Rodi UCM581; Mivar VAR; Milano (ID = 2440688) Radio
Rodi UCM581; Mivar VAR; Milano (ID = 2440690) Radio Rodi UCM581; Mivar VAR; Milano (ID = 2440691) Radio
Use red slider bar for more.
Rodi UCM581; Mivar VAR; Milano (ID = 2440680) Radio
Mivar VAR; Milano: Rodi UCM581 [Radio] ID = 2440680 1400x895
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rodi UCM581, Mivar (VAR); Milano

Country:  Italy
Manufacturer / Brand:  Mivar (VAR); Milano
Year: 1958–1960 Category: Broadcast Receiver - or past WW2 Tuner

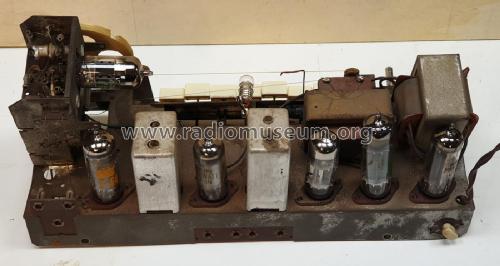

Valves / Tubes 6: ECC85 ECH81 EF89 UABC80 UL84 UY85
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Rodi UCM581 - Mivar VAR; Milano
Material Modern plastics (no Bakelite or Catalin)

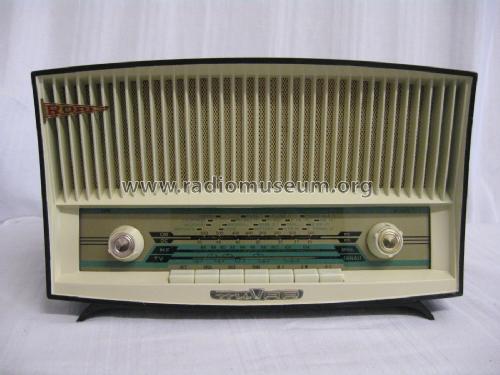

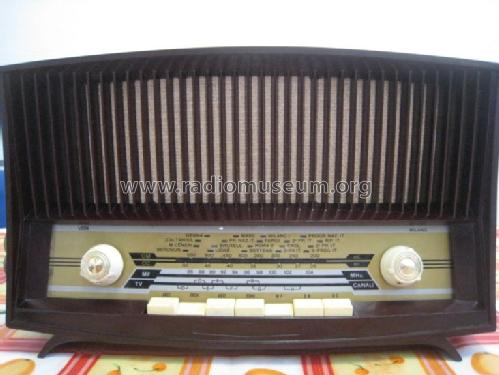

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 340 x 200 x 140 mm / 13.4 x 7.9 x 5.5 inch

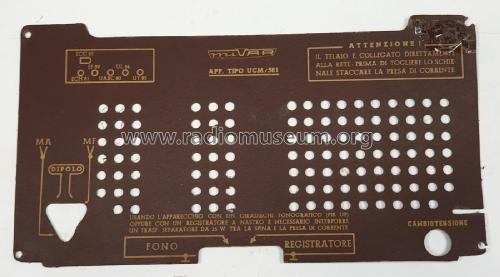

Notes Medium (BC) and short (SW) waves, FM band limited at 101 Mhz. Live chassis.
Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)
Source of data Guida Pratica Antique Radio II (2000)
Mentioned in -- Collector info (Sammler)

Model page created by Federico Valdameri † 7.2015. See "Data change" for further contributors.
