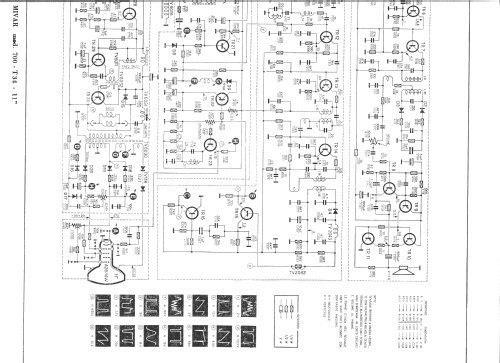

T34; Mivar VAR; Milano (ID = 1281513) Television

T34; Mivar VAR; Milano (ID = 1281515) Television

T34; Mivar VAR; Milano (ID = 1281516) Television

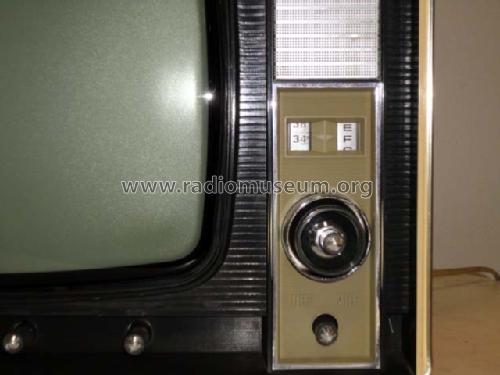

T34; Mivar VAR; Milano (ID = 1279230) Television T34; Mivar VAR; Milano (ID = 1279223) Television

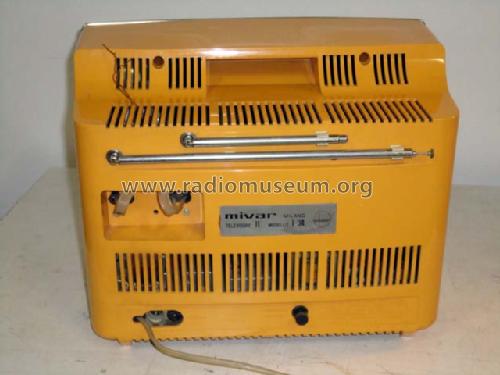

T34; Mivar VAR; Milano (ID = 1279225) Television T34; Mivar VAR; Milano (ID = 1279226) Television

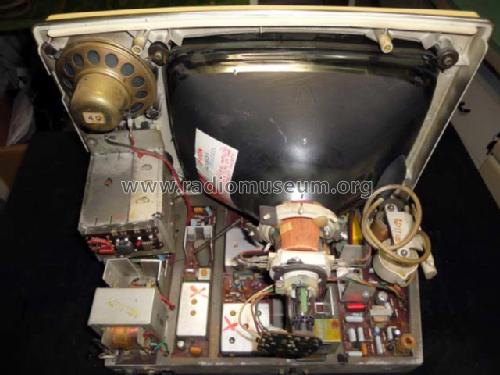

T34; Mivar VAR; Milano (ID = 1279228) Television T34; Mivar VAR; Milano (ID = 1279229) Television

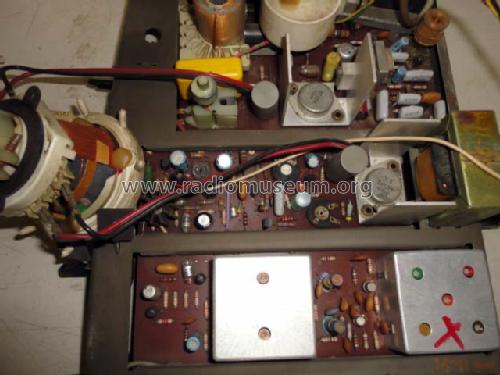

T34; Mivar VAR; Milano (ID = 1279231) Television T34; Mivar VAR; Milano (ID = 1279232) Television
T34; Mivar VAR; Milano (ID = 1279233) Television
Use red slider bar for more.
T34; Mivar VAR; Milano (ID = 1279230) Television
Mivar VAR; Milano: T34 [Television] ID = 1279230 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model T34, Mivar (VAR); Milano

Country:  Italy
Manufacturer / Brand:  Mivar (VAR); Milano
Year: 1971 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: A28-14W
Semiconductors (the count is only for transistors) 30:
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Line / Batteries (any type) / 220 / 11-16 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out
from Radiomuseum.org Model: T34 - Mivar VAR; Milano
Material Bakelite or Plastics (type unknown)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 370 x 280 x 270 mm / 14.6 x 11 x 10.6 inch
Notes Televisore da 11 pollici portatile.

Model page created by Raffaele Pedrini. See "Data change" for further contributors.



All listed radios etc. from Mivar (VAR); Milano
Here you find 117 models, 105 with images and 67 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
