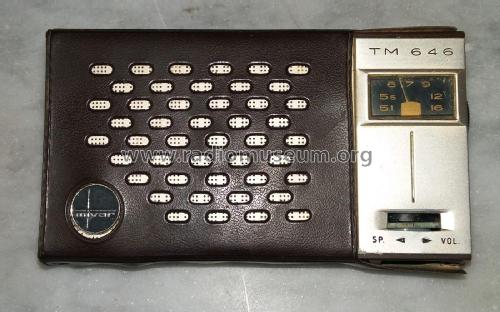

TM646; Mivar VAR; Milano (ID = 237362) Radio
Mivar VAR; Milano: TM646 [Radio] ID = 237362 901x509
Select picture or schematic to display from thumbnails on the right and click for download.
For model TM646, Mivar (VAR); Milano

Country:  Italy
Manufacturer / Brand:  Mivar (VAR); Milano
Year: 1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: SFT320 or. AF170 SFT319 or. AF172 SFT319 or. AF172 SFT353 or. AC135 SFT323 or. AC135 SFT323 or. AC135 SFD106 or. AA121
Main principle Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4x1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: TM646 - Mivar VAR; Milano
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 160 x 75 x 40 mm / 6.3 x 3 x 1.6 inch
Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Price in first year of sale 13'000.00 ITL
Source of data -- Collector info (Sammler)
Mentioned in Catalogo ANIE 1965-66

Model page created by Franz Scharner. See "Data change" for further contributors.
