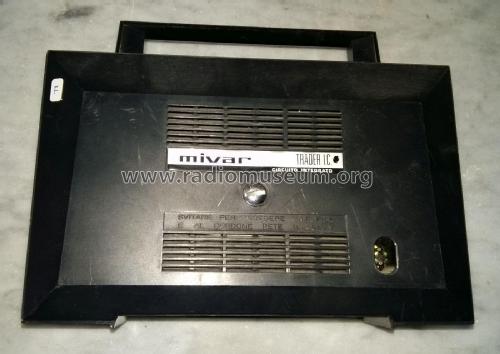

Trader-IC ; Mivar VAR; Milano (ID = 2511871) Radio Trader-IC ; Mivar VAR; Milano (ID = 2511872) Radio
Use red slider bar for more.
Trader-IC ; Mivar VAR; Milano (ID = 570800) Radio
Mivar VAR; Milano: Trader-IC [Radio] ID = 570800 830x623
Select picture or schematic to display from thumbnails on the right and click for download.
For model Trader-IC, Mivar (VAR); Milano

Country:  Italy
Manufacturer / Brand:  Mivar (VAR); Milano
Year: 1972 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 3: SFT320 or. AF126 SFT319 or. AF127 SFT319 or. AF127 TBA790 or. TAA661 1N542 or. AA119 BZX62 B30C400
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / ~220; =9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Trader-IC - Mivar VAR; Milano
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 265 x 210 x 85 mm / 10.4 x 8.3 x 3.3 inch
Notes

The AF stage is a single integrated circuit (TBA-790L or TAA661D)

Speaker 5,6 Ohm

Net weight (2.2 lb = 1 kg) 1.350 kg / 2 lb 15.6 oz (2.974 lb)
Literature/Schematics (1) Antique Radio Magazine n.78, May-June 2007, page 6. Written in Italian.

Model page created by Aldo Andreani. See "Data change" for further contributors.
