• Year
  • 1969
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 115499

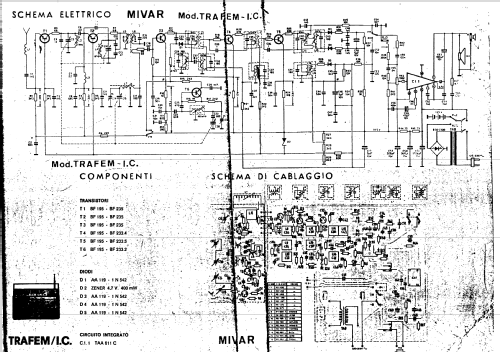

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 120-220 / 3 × 4,50 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
  • Power out
  • 1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Trafem IC - Mivar VAR; Milano
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 265 x 210 x 85 mm / 10.4 x 8.3 x 3.3 inch
  • Notes
  • Transistor: 6xBF195 or 3xBF235 3xBF233, + Integrated Circuit TAA611C for Audio frequecy,

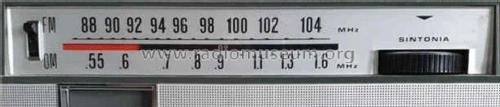

    La gamma FM arriva fino a 104 MHz mentre nella Trafem C arriva fino a 108 MHz.

  • Net weight (2.2 lb = 1 kg)
  • 1.6 kg / 3 lb 8.4 oz (3.524 lb)
