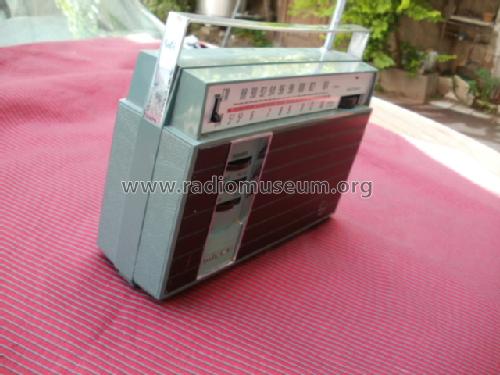

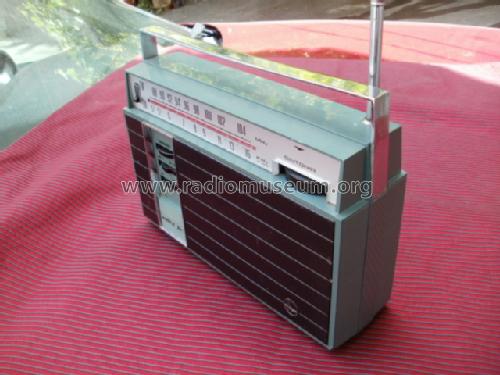

Trafem ; Mivar VAR; Milano (ID = 777603) Radio Trafem ; Mivar VAR; Milano (ID = 777606) Radio

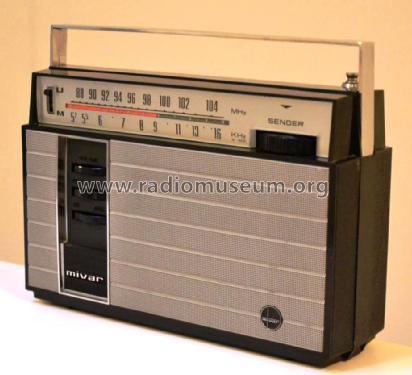

Trafem ; Mivar VAR; Milano (ID = 1921275) Radio Trafem ; Mivar VAR; Milano (ID = 1921276) Radio
Trafem ; Mivar VAR; Milano (ID = 1921277) Radio Trafem ; Mivar VAR; Milano (ID = 1921278) Radio
Trafem ; Mivar VAR; Milano (ID = 1921279) Radio Trafem ; Mivar VAR; Milano (ID = 1921280) Radio
Use red slider bar for more.
Trafem ; Mivar VAR; Milano (ID = 316585) Radio
Mivar VAR; Milano: Trafem [Radio] ID = 316585 865x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Trafem, Mivar (VAR); Milano

Country:  Italy
Manufacturer / Brand:  Mivar (VAR); Milano
Year: 1963 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: AF106 SFT358 SFT316 SFT320 SFT320 SFT316 SFT316 SFT337 SFT353 SFT325 SFT325 1N542 1N542 1N542 1N542 B30C250
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 125-220 / 3 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Trafem - Mivar VAR; Milano
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 265 x 210 x 85 mm / 10.4 x 8.3 x 3.3 inch
Notes Diodi 4x 1N542, ponte al selenio B30/C250.
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Literature/Schematics (1) -- Schematic

Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.



All listed radios etc. from Mivar (VAR); Milano
Here you find 117 models, 107 with images and 68 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
