Trafem B

Trafem B; Mivar VAR; Milano (ID = 1757155) Radio

Trafem B; Mivar VAR; Milano (ID = 1757156) Radio
Trafem B; Mivar VAR; Milano (ID = 1874553) Radio Trafem B; Mivar VAR; Milano (ID = 1874554) Radio
Trafem B; Mivar VAR; Milano (ID = 1874555) Radio Trafem B; Mivar VAR; Milano (ID = 1874556) Radio
Use red slider bar for more.
Trafem B; Mivar VAR; Milano (ID = 1874553) Radio
Mivar VAR; Milano: Trafem B [Radio] ID = 1874553 1000x733
Select picture or schematic to display from thumbnails on the right and click for download.
For model Trafem B, Mivar (VAR); Milano

Country:  Italy
Manufacturer / Brand:  Mivar (VAR); Milano
Year: 1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: AF106 AF124 AF126 AF127 AF127 AF126 AF126 AC151 AC151 AC152 AC152 AA119 AA119 OA91 B30C250
Main principle Superheterodyne (common)

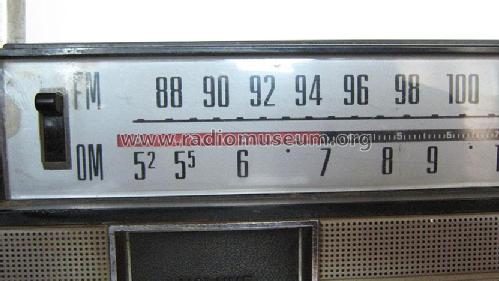

Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110-240 / 3 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1 W (undistorted)
from Radiomuseum.org Model: Trafem B - Mivar VAR; Milano
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 270 x 210 x 80 mm / 10.6 x 8.3 x 3.1 inch
Notes

Alternatively with Thomson transistors.

Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Literature/Schematics (1) -- Original prospect or advert

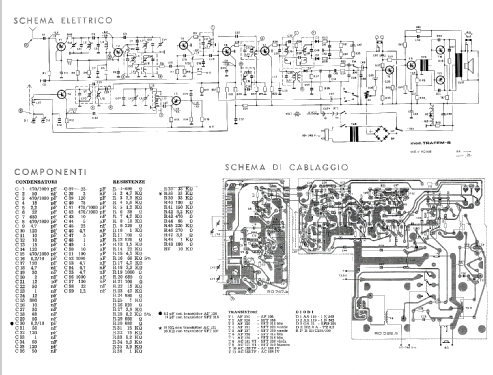

Literature/Schematics (2) -- Schematic

Model page created by Adamantios Nikolaidis Wentzelopoulos. See "Data change" for further contributors.
