Mohawk Iroquois (batt. or AC)

Mohawk Iroquois ; All American Mohawk, (ID = 1309265) Radio Mohawk Iroquois ; All American Mohawk, (ID = 1309270) Radio
Mohawk Iroquois ; All American Mohawk, (ID = 1309272) Radio Mohawk Iroquois ; All American Mohawk, (ID = 1309275) Radio
Mohawk Iroquois ; All American Mohawk, (ID = 1742782) Radio
Use red slider bar for more.
Mohawk Iroquois ; All American Mohawk, (ID = 1309265) Radio
All American Mohawk,: Mohawk Iroquois [Radio] ID = 1309265 752x1400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mohawk Iroquois (batt. or AC), All American Mohawk, Rauland Lyric; Chicago:
1927 Mohawk Corporation advertiser brochure

Country:  United States of America (USA)
Manufacturer / Brand:  All American Mohawk, Rauland Lyric; Chicago
alternative name

All American Electrical Manufacturers || All-American Radio || American Mohawk || Mohawk Corporation of Illinois || Mohawk Electric Corporation || Rauland Mfg.Co.
Year: 1927/1928 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6:
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Mohawk Iroquois - All American Mohawk, Rauland
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 23.5 x 47.75 x 15.5 inch / 597 x 1213 x 394 mm
Notes

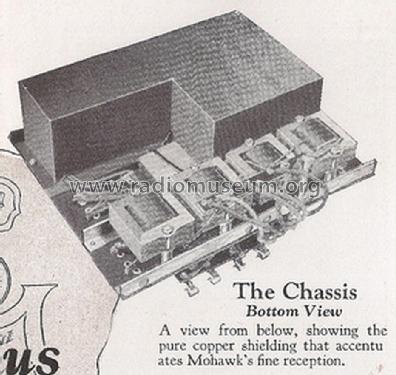

The 1927/1928 Mohawk One Dial Radio Receivers are six tube shielded, consisting of two stages of tuned radio frequency amplification, detector, three stages of transformer coupled audio frequency amplification with one output transformer.

The chassis was basically a battery receiver for $130.00 with tubes.

It was also available as an AC receiver for $240.00 (converted by use of McCullough AC tubes plus an additional power supply).

Price in first year of sale 130.00 USD
Collectors' prices
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Mentioned in Collector's Guide to Antique Radios 4. Edition

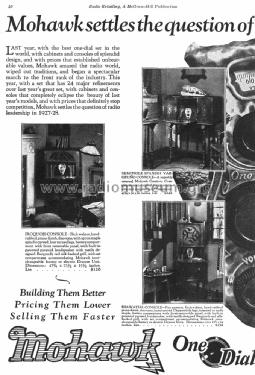

Literature/Schematics (2) Radio Retailing (Radio & Television R.) (June 1927, page 40.)
Literature/Schematics (3) 1927 Mohawk Corporation advertiser brochure
