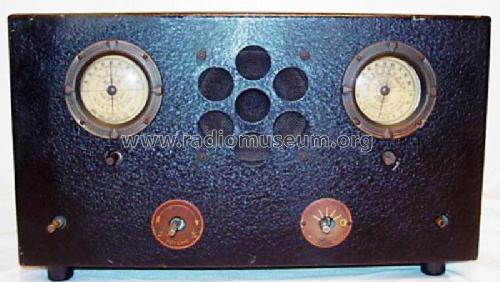

10 Monarch
Sargent Co., E.M.; Oakland, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sargent Co., E.M.; Oakland, CA
- Year
- 1936 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 47479
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- TRF with regeneration
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: 10 Monarch - Sargent Co., E.M.; Oakland, CA
- Notes
- Bc and 3 to 4 SW bands up to 20 Mc. Plug-in coils for wave band change.
