Elektro 3

Monette, Mock & Nettebeck; Berlin

Data

Forum

Pictures

Collections

Country
Germany

Manufacturer / Brand
Monette, Mock & Nettebeck; Berlin

Year
1929/1930

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
15979

Schematics

Elektro 3; Monette, Mock & (ID = 275465) Radio — Monette, Mock & Elektro 3 (3)

Elektro 3; Monette, Mock & (ID = 3218419) Radio — Monette, Mock & Elektro 3 (1)

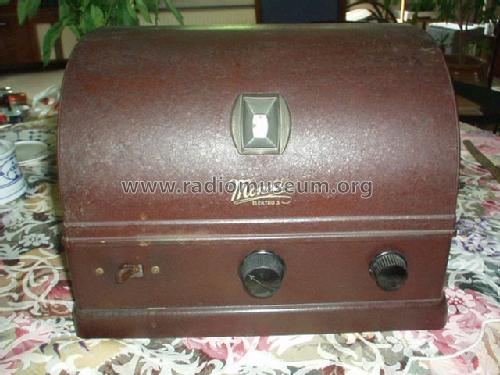

Der seitliche Abstimmknopf ist ein Nachguss.

Elektro 3; Monette, Mock & (ID = 3218422) Radio — Monette, Mock & Elektro 3 (1)

Elektro 3; Monette, Mock & (ID = 3218420) Radio — Monette, Mock & Elektro 3 (1)

Elektro 3; Monette, Mock & (ID = 3218430) Radio — Monette, Mock & Elektro 3 (1)

Elektro 3; Monette, Mock & (ID = 3218421) Radio — Monette, Mock & Elektro 3 (1)

Elektro 3; Monette, Mock & (ID = 3218423) Radio — Monette, Mock & Elektro 3 (1)

Elektro 3; Monette, Mock & (ID = 3218424) Radio — Monette, Mock & Elektro 3 (1)

Elektro 3; Monette, Mock & (ID = 3218425) Radio — Monette, Mock & Elektro 3 (1)

Elektro 3; Monette, Mock & (ID = 3218426) Radio — Monette, Mock & Elektro 3 (1)

Elektro 3; Monette, Mock & (ID = 3218427) Radio — Monette, Mock & Elektro 3 (1)

Elektro 3; Monette, Mock & (ID = 3218428) Radio — Monette, Mock & Elektro 3 (1)

Elektro 3; Monette, Mock & (ID = 3218429) Radio — Monette, Mock & Elektro 3 (1)

Elektro 3; Monette, Mock & (ID = 3218431) Radio — Monette, Mock & Elektro 3 (1)

Elektro 3; Monette, Mock & (ID = 3218432) Radio — Monette, Mock & Elektro 3 (1)

Elektro 3; Monette, Mock & (ID = 468591) Radio — Monette, Mock & Elektro 3 (1)

Elektro 3; Monette, Mock & (ID = 468595) Radio — Monette, Mock & Elektro 3 (1)

Elektro 3; Monette, Mock & (ID = 275459) Radio — Monette, Mock & Elektro 3 (2)

Elektro 3; Monette, Mock & (ID = 468592) Radio — Monette, Mock & Elektro 3 (1)

Elektro 3; Monette, Mock & (ID = 468593) Radio — Monette, Mock & Elektro 3 (1)

Elektro 3; Monette, Mock & (ID = 468594) Radio — Monette, Mock & Elektro 3 (1)

Elektro 3; Monette, Mock & (ID = 468596) Radio — Monette, Mock & Elektro 3 (1)

Elektro 3; Monette, Mock & (ID = 468597) Radio — Monette, Mock & Elektro 3 (1)

Elektro 3; Monette, Mock & (ID = 468598) Radio — Monette, Mock & Elektro 3 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
4

Valves / Tubes
REN804 REN1004 RE134 RGN504

Main principle
TRF with regeneration; 2 AF stage(s)

Tuned circuits
1 AM circuit(s)

Wave bands
Broadcast (MW) and Long Wave.

Power type and voltage
Alternating Current supply (AC) / 120; 220; 240 Volt

Loudspeaker
- This model requires external speaker(s).

Material
Metal case

from Radiomuseum.org
Model: Elektro 3 - Monette, Mock & Nettebeck;

Shape
Tablemodel, Box - most often with Lid (NOT slant panel).

Dimensions (WHD)
320 x 233 x 192 mm / 12.6 x 9.2 x 7.6 inch

Net weight (2.2 lb = 1 kg)
5.650 kg / 12 lb 7.1 oz (12.445 lb)

Price in first year of sale
194.00 RM !

External source of data
E. Erb 3-907007-36-0

Source of data
Radiokatalog Band 2, Ernst Erb

Circuit diagram reference
FS-Bestückungstab. (wahrsch. m.Fehler)

Mentioned in
Funkgeschichte der GFGF (9606)
