• Country
• Germany

• Manufacturer / Brand
• Monette, Mock & Nettebeck; Berlin

• Year
• 1926/1927

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 328424

• Number of Tubes
• 4

• Valves / Tubes
• RE064 RE064 RE054 RE154

• Main principle
• TRF with regeneration; 2 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org

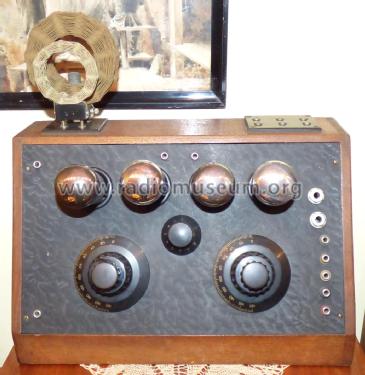

• Model: Monette Vierröhren-Empfänger - Monette, Mock & Nettebeck;

• Shape
• Tablemodel, slant panel.

• Dimensions (WHD)
• 330 x 320 x 140 mm / 13 x 12.6 x 5.5 inch

• Notes

• Sperrkreis

  Siehe auch Monette NW mit weiteren Drehknöpfen.

• Price in first year of sale
• 158.00 RM

• Mentioned in
• Vox-Haus, Katalog 1926/1927 (Röhren in FS-Bestückungstabellen)

• Author
• Model page created by Heribert Jung. See "Data change" for further contributors.
