For model Airline 04BR-1106A Order= 162 B 1106, Montgomery Ward & Co. (Wards, Airline); Chicago, IL:

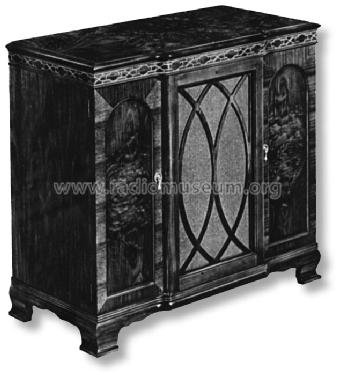

Image Courtesy of Mark V. Stein for Radiomuseum.org use only.

Country:  United States of America (USA)
Manufacturer / Brand:  Montgomery Ward & Co. (Wards, Airline); Chicago, IL
Brand

Airline or Air-Line
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: 6SK7 6SA7 6SK7 6SK7 6U5 6SQ7 6SQ7 6J5GT 6V6GT 6V6GT 5Y3G
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 10 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
Power out 10 W (unknown quality)
from Radiomuseum.org Model: Airline 04BR-1106A Order= 162 B 1106 - Montgomery Ward & Co. Wards,
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 39 x 35 x 19 inch / 991 x 889 x 483 mm
Notes

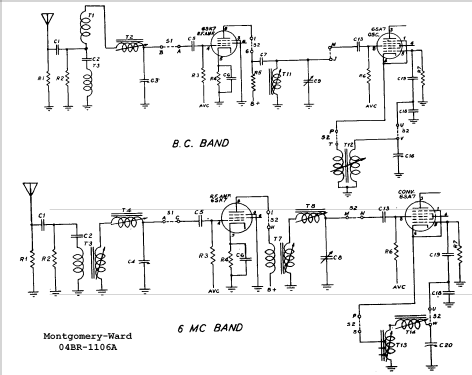

BC (540-1600 kHz), SW1 (5.9-6.1 MHz), SW2 (9.1-10.0 MHz), SW3 (11.4-12.1 MHz) and SW4 (14.9-15.4 MHz) bands. Tuning eye, push-pull audio amplifier.

Model Airline 04BR-1106A is a Record Changer and Radio without Recorder. Same Model with Recorder : Model Airline 1107.

Price in first year of sale 109.50 $
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

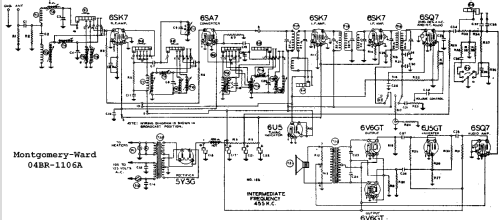

Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
Mentioned in Pre-War Consoles

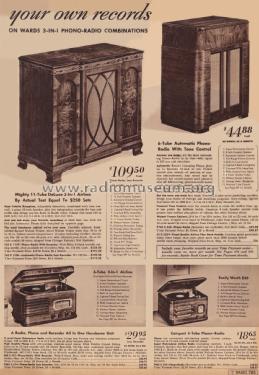

Literature/Schematics (4) Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1940/41, No. 133, page 699. Spring/Summer 1941, page 703.)
